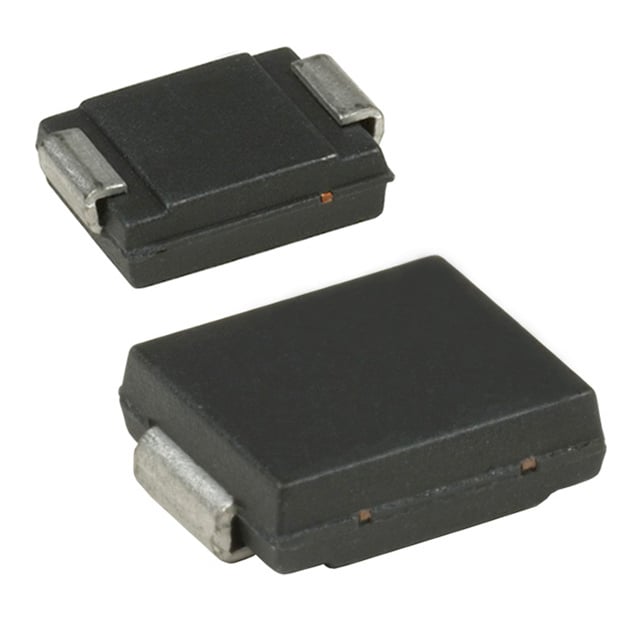

SMC30J22CA
Or copy the link below:
- Mfr.Part #
- SMC30J22CA
- Manufacturer
- STMicroelectronics
- Package / Case
- DO-214AB, SMC
- Datasheet
- Download
- Description
- TVS DIODE 22VWM 35.5VC SMC
- Stock
- 2,073
- In Stock ：
- 2,073
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- REACH SVHC :
- No SVHC
- Terminal Position :
- Dual
- Package / Case :
- DO-214AB, SMC
- Pin Count :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 6 months ago)
- Non-rep Peak Rev Power Dis-Max :
- 3000W
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reverse Standoff Voltage :
- 22V
- Clamping Voltage :
- 35.5V
- Power Line Protection :
- No
- Number of Terminations :
- 2
- Peak Pulse Power :
- 3kW
- Configuration :
- Single
- Max Power Dissipation :
- 3kW
- Base Part Number :
- SMC30J
- Type :
- Zener
- Packaging :
- Cut Tape (CT)
- Peak Pulse Current :
- 85A
- Direction :
- Bidirectional
- Diode Element Material :
- SILICON
- Number of Pins :
- 2
- Voltage - Clamping (Max) @ Ipp :
- 35.5V
- Series :
- SMC30J, TRANSIL™
- Breakdown Voltage :
- 24.4V
- Mount :
- Surface Mount
- Power - Peak Pulse :
- 3000W 3kW
- Number of Elements :
- 1
- Applications :
- GENERAL PURPOSE
- Terminal Form :
- C BEND
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -55°C~175°C TJ
- Working Voltage :
- 22V
- Bidirectional Channels :
- 1
- Datasheets
- SMC30J22CA
