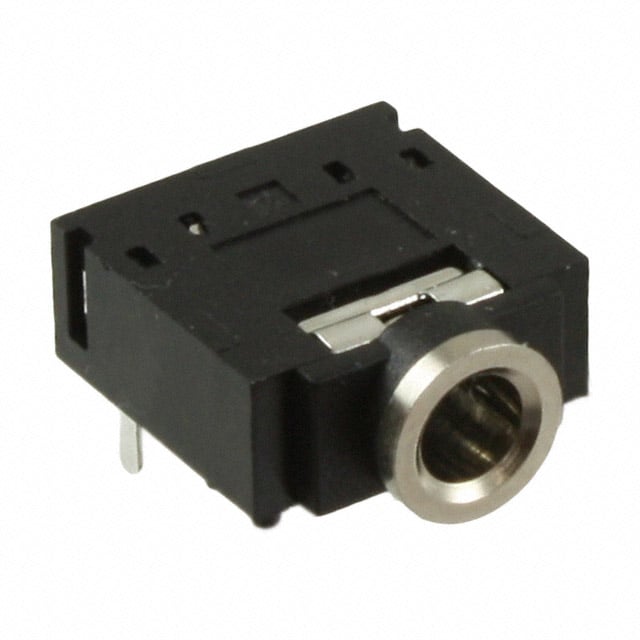

    SJ1-3525N

    Share

    Or copy the link below:

    Mfr.Part #
    SJ1-3525N
    Manufacturer
    CUI Devices
    Package / Case
    Datasheet
    Download
    Description
    CONN JACK STEREO 3.5MM R/A
    Stock
    23,002
    In Stock ：
    23,002

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    CUI Devices
    Product Category :
    Audio Connectors
    Current Rating :
    1A
    Actual Diameter :
    0.142 (3.60mm)
    Operating Temperature :
    -25°C~85°C
    Contact Material - Plating :
    Tin
    Lead Free :
    Lead Free
    Contact Material :
    Brass; Copper Alloy
    Signal Lines :
    Stereo (3 Conductor, TRS)
    Internal Switch(s) :
    Two Switches
    Color :
    Black
    Body Material :
    Brass
    Mating Length/Depth :
    0.551 14.00mm
    Mounting Type :
    Through Hole, Right Angle
    Industry Recognized Mating Diameter :
    3.50mm (0.141, 1/8, Mini Plug) - Headphone
    Body Color :
    Silver, Black
    Housing Material :
    Polybutylene Terephthalate (PBT)
    Series :
    SJ1
    Published :
    2011
    Diameter :
    3.5mm
    Connector Type :
    Phone Jack
    Contact Plating :
    Tin
    Factory Lead Time :
    11 Weeks
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Orientation :
    Horizontal
    Shielding :
    Unshielded
    Number of Conductors :
    3
    Voltage - Rated :
    12VDC
    Termination :
    Solder
    Packaging :
    Bulk
    Gender :
    FEMALE
    Number of Ports :
    1
    Number of Positions/Contacts :
    3 Conductors, 5 Contacts
    Current Rating (Amps) :
    1A
    RoHS Status :
    RoHS Compliant
    Mount :
    Through Hole
    Introducing Audio Connectors CUI Devices SJ1-3525N from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-25°C~85°C, Mounting Type：Through Hole, Right Angle, SJ1-3525N pinout, SJ1-3525N datasheet PDF, SJ1-3525N amp .Beyond Audio Connectors CUI Devices SJ1-3525N ,we also offer RCJ-042, RCJ-2223, 50-00040, Our vast inventory has you covered. Contact us now for immediate solutions.
