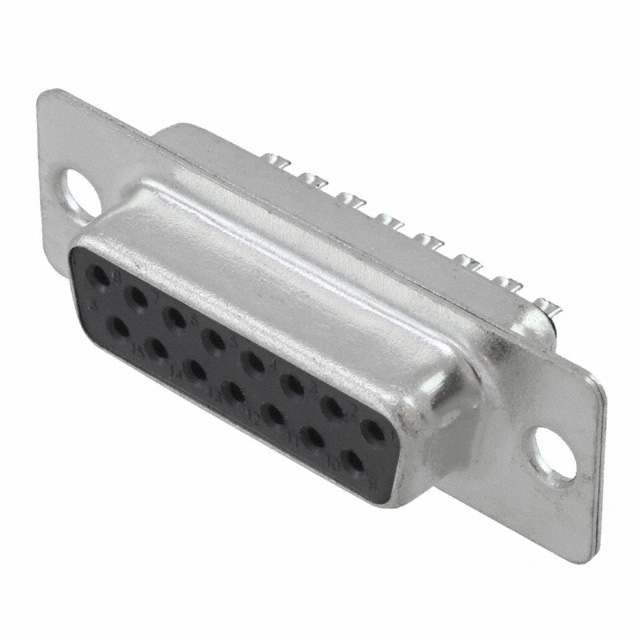

SDS100-PRW2-F15-SN00-1
Or copy the link below:
- Mfr.Part #
- SDS100-PRW2-F15-SN00-1
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS SLDR CUP
- Stock
- 18,697
- In Stock ：
- 18,697
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- D-Sub Connector Assemblies
- Packaging :
- Tray
- Flange Feature :
- Housing/Shell (Unthreaded)
- Published :
- 2012
- Connector Style :
- D-Sub
- Voltage - Rated :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Contact Material :
- Brass
- Total Number of Contacts :
- 15
- Wire Gauge :
- 22 AWG
- Mount :
- Free Hanging
- Reference Standard :
- UL
- Operating Temperature :
- -55°C~105°C
- Number of Rows :
- 2
- Series :
- 100
- Body Length or Diameter :
- 1.543 inch
- Material Flammability Rating :
- UL94 V-0
- Contact Form :
- Stamped
- Reliability :
- COMMERCIAL
- Connector Type :
- Receptacle, Female Sockets
- Contact Design :
- PREASSEM CONN
- Shell Size, Connector Layout :
- 2 DA A
- Mating Contact Pitch :
- 0.109 inch
- Contact Finish Thickness :
- Flash
- Current Rating :
- 3A
- Housing Material :
- PBT
- Rated Current (Signal) :
- 3A
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Signal
- Shell Material, Finish :
- Steel, Tin Plated
- Termination :
- Solder Cup
- Dielectric Withstanding Voltage :
- 1400VAC V
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Shell Finish :
- TIN OVER COPPER
- Mounting Type :
- Free Hanging (In-Line)
- Contact Finish :
- Gold
- Body Breadth :
- 0.494 inch
- Number of Positions :
- 15
- Datasheets
- SDS100-PRW2-F15-SN00-1
100 Series D-Sub Receptacle, Female Sockets 15-Position Signal Solder Cup 2 DA A Free Hanging (In-Line) Brass Gold Steel, Tin Plated
SDS100-PRW2-F15-SN00-1 Overview
Packaging is Receptacle, Female Sockets.This device has a Free Hanging (In-Line) mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 100 Series.There is a mounting hole at Free Hanging.Devices operate at -55°C~105°C operating temperatures.
SDS100-PRW2-F15-SN00-1 Features
100 series
SDS100-PRW2-F15-SN00-1 Applications
There are a lot of Sullins Connector Solutions
SDS100-PRW2-F15-SN00-1 D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
