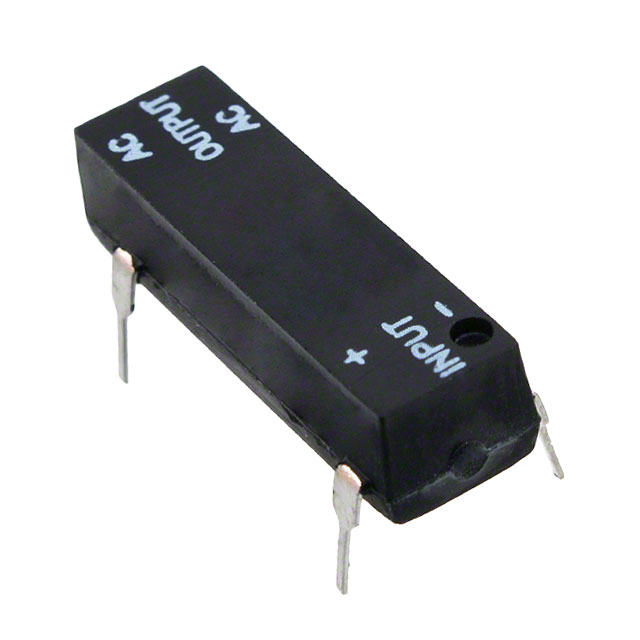

SDI2415

Manufacturer :

Sensata Technologies – Crydom

Product Category :

Solid State Relays

Output Current :

1.5A

Width :

6.7mm

Mount :

PCB, Through Hole

Operating Supply Voltage :

280V

Package / Case :

16-DIP (0.300, 7.62mm), 4 Leads

Output Type :

AC, Zero Cross

Termination Style :

PC Pin

Isolation Voltage :

3.75kV

Radiation Hardening :

No

REACH SVHC :

Unknown

Supplier Device Package :

16-DIP

Depth :

6.73mm

Throw Configuration :

SPST

Max Operating Temperature :

80°C

Voltage - Load :

12V~280V

Height :

4.8mm

Termination :

PC Pin

Max Surge Current :

30A

Packaging :

Tube

Number of Pins :

16

Lead Free :

Lead Free

Max Input Current :

35mA

Voltage - Rated AC :

240V

Length :

21.6mm

Input Current :

35mA

Relay Type :

Relay

Load Current :

1.5A

Current Rating :

1.5A

Min Operating Temperature :

-30°C

Factory Lead Time :

6 Weeks

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2001

Circuit :

SPST-NO (1 Form A)

Series :

SDI

Max Output Voltage :

280V

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole
