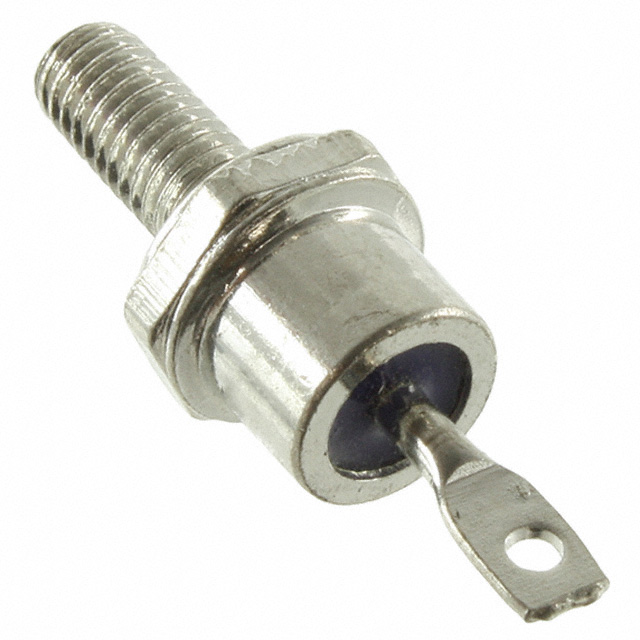

SD4145

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

Operating Temperature (Max) :

150°C

HTS Code :

8541.10.00.80

Forward Current :

30A

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Number of Elements :

1

Terminal Form :

Solder Lug

ECCN Code :

EAR99

Package / Case :

DO-203AA, DO-4, Stud

Mount :

Chassis, Stud

Diode Type :

Schottky

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Operating Temperature - Junction :

-55°C~150°C

Pbfree Code :

yes

Max Reverse Voltage (DC) :

45V

Diode Element Material :

SILICON

Number of Terminations :

1

JESD-30 Code :

O-MUPM-D1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Reverse Leakage @ Vr :

1.5mA @ 35V

Peak Reverse Current :

1A

Factory Lead Time :

10 Weeks

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Case Connection :

CATHODE

Number of Phases :

1

Application :

Power

Terminal Position :

UPPER

Max Repetitive Reverse Voltage (Vrrm) :

45V

Mounting Type :

Chassis, Stud Mount

Configuration :

Single

Average Rectified Current :

30A

Voltage - Forward (Vf) (Max) @ If :

680mV @ 30A
