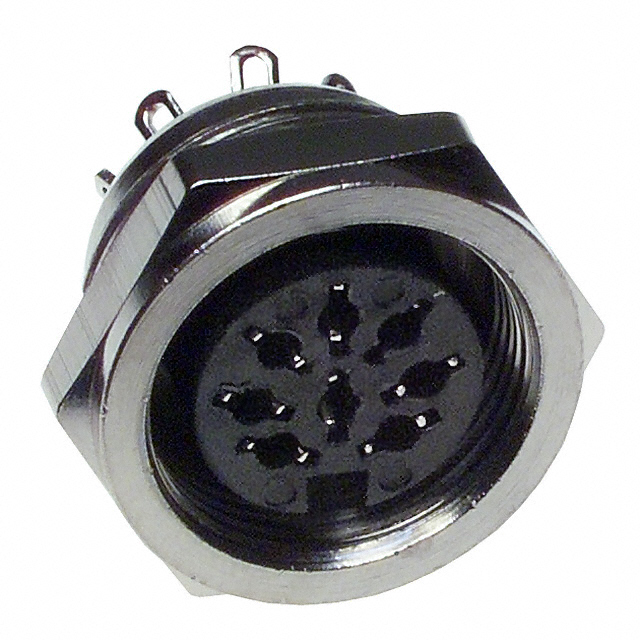

SD-80LS
Or copy the link below:
- Mfr.Part #
- SD-80LS
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE DIN 8P SOLDER
- Stock
- 1,191
- In Stock ：
- 1,191
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Circular Connector Assemblies
- Termination :
- Solder Eyelet(s)
- Contact Material :
- Brass
- Voltage - Rated :
- 100VAC
- RoHS Status :
- RoHS Compliant
- Shell Size - Insert :
- DIN 270 Degree
- Shielding :
- Shielded
- Packaging :
- Bulk
- Current Rating (Amps) :
- 2A
- Factory Lead Time :
- 10 Weeks
- Contact Finish - Mating :
- Tin
- Mount :
- Bulkhead, Panel, Rear Side Nut
- Orientation :
- Keyed
- Insulation Material :
- Nylon
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Fastening Type :
- Threaded
- Material Flammability Rating :
- UL94 HB
- Shell Finish :
- Nickel
- Series :
- SD-LS
- Color :
- Silver
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~85°C
- Published :
- 2003
- Connector Type :
- Receptacle, Female Sockets
- Mounting Type :
- Panel Mount
- Max Operating Temperature :
- 85°C
- Number of Positions :
- 8
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 8
- Contact Plating :
- Silver
- Insert Material :
- Polyamide (PA), Nylon
- Min Operating Temperature :
- -40°C
- Shell Material :
- Zinc
- Current Rating :
- 2A
- Datasheets
- SD-80LS
SD-80LS Documents
Receptacle, Female Sockets Zinc Panel Mount 8 Positions Solder Eyelet(s) Tin Nickel Bulk Keyed Threaded
SD-80LS Overview
Packaging is Receptacle, Female Sockets.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the SD-LS Series, it can be found in this category.Temperatures below 85°C are best for using it.There's a minimum temperature of -40°C for this device.In this case, Bulkhead, Panel, Rear Side Nut mounts the part.The device is operating at -40°C~85°C Operating Temperature.
SD-80LS Features
SD-LS series
SD-80LS Applications
There are a lot of CUI Devices
SD-80LS Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
