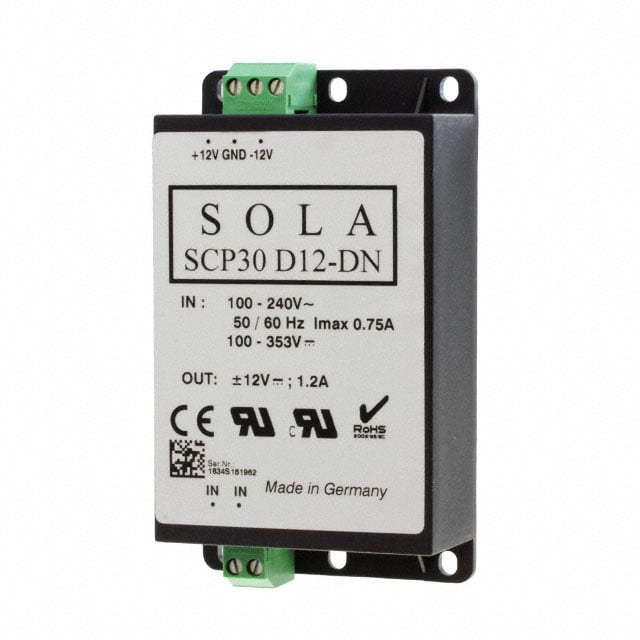

SCP30D12-DN

Manufacturer :

SolaHD

Product Category :

Size / Dimension :

2.55Lx1.29W x 4.71 H 65.0mmx33.0mmx120.0mm

Mounting Type :

DIN Rail

Type :

Enclosed

Max Output Power :

30W

Height :

120mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Output 1 :

1.2A

Efficiency :

68%

Nominal Output Voltage :

12V

Current - Output (Max) :

1.2A 1.2A

Feature :

IP20, Universal Input

Output Voltage :

12V

Max Voltage Rating (AC) :

264V

Min Input Voltage :

85V

Output Current :

1.2A

Number of Outputs :

2

Power (Watts) :

29W

Power Rating :

30W

Number of Pins :

7

Output Power :

30W

Operating Temperature :

-25°C~65°C

RoHS Status :

RoHS Compliant

Minimum Load Required :

yes

Approval Agency :

CE, cURus

REACH SVHC :

Unknown

Switching Frequency :

100kHz

Voltage - Output 2 :

-12V

Max Input Voltage :

264V

Current Rating :

1.2A

Voltage - Input :

85V~264VAC 100V~375VDC

Min Input Voltage (AC) :

85V

Weight :

340.194277g

Current - Output 2 :

1.2A

Published :

2002

Applications :

ITE (Commercial)

Series :

SCP (30W)

Mount :

DIN Rail, Panel

Max Output Current :

1.2A
