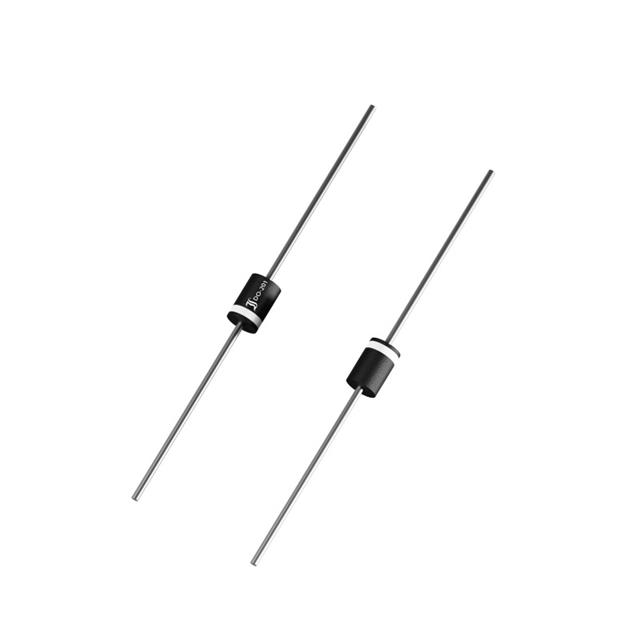

SB330

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Forward Current :

3A

Application :

GENERAL PURPOSE

Min Operating Temperature :

-65°C

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Current Rating :

3A

Number of Terminations :

2

JESD-609 Code :

e3

Forward Voltage :

500mV

Diode Element Material :

SILICON

RoHS Status :

ROHS3 Compliant

Diode Type :

Schottky

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Repetitive Reverse Voltage (Vrrm) :

30V

Polarity :

Standard

Pbfree Code :

yes

Number of Pins :

2

Peak Reverse Current :

500μA

Lead Free :

Lead Free

Power Dissipation-Max :

3.6W

Packaging :

Tape and Reel (TR)

Operating Temperature - Junction :

-65°C~125°C

ECCN Code :

EAR99

Max Forward Surge Current (Ifsm) :

80A

Capacitance @ Vr, F :

180pF @ 4V 1MHz

Average Rectified Current :

3A

Number of Elements :

1

HTS Code :

8541.10.00.80

Current - Reverse Leakage @ Vr :

500μA @ 30V

Max Surge Current :

80A

Natural Thermal Resistance :

40 °C/W

Terminal Finish :

Tin (Sn)

Peak Non-Repetitive Surge Current :

80A

Base Part Number :

SB330

Max Reverse Leakage Current :

500μA

Additional Feature :

FREE WHEELING DIODE

Radiation Hardening :

No

Weight :

360mg

Number of Phases :

1

Output Current :

3A

Mounting Type :

Through Hole

Case Connection :

Isolated

Terminal Form :

Wire

Package / Case :

DO-201AD, Axial

Mount :

Through Hole

Published :

2013

Max Operating Temperature :

125°C

Voltage - Forward (Vf) (Max) @ If :

500mV @ 3A

Element Configuration :

Single

Voltage - Rated DC :

30V

Max Reverse Voltage (DC) :

30V

Factory Lead Time :

13 Weeks

REACH SVHC :

No SVHC

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)
