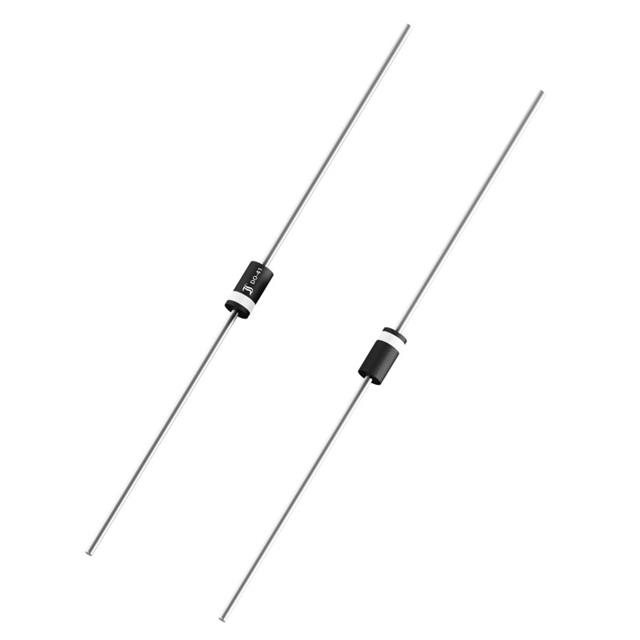

SB150S
Or copy the link below:
- Mfr.Part #
- SB150S
- Manufacturer
- Diotec Semiconductor
- Package / Case
- Datasheet
- Download
- Description
- SchottkyD, 50V, 1A
- Stock
- 2,514
- In Stock ：
- 2,514
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- RoHS Status :
- Yes with exemptions
- Peak Reverse Repetitive Voltage (V) :
- 50
- Peak Reverse Current (uA) :
- 1000
- Automotive :
- yes
- Minimum Operating Temperature (°C) :
- -50
- Peak Forward Voltage (V) :
- 0.7
- Supplier Package :
- DO-41
- Mounting :
- Through Hole
- Maximum Continuous Forward Current (A) :
- 1@Ta=75C
- Type :
- Schottky Diode
- Configuration :
- Single
- Diameter :
- 2.6
- PCB changed :
- 2
- Standard Package Name :
- DO-204-AL
- Maximum Operating Temperature (°C) :
- 150
- Lead Shape :
- Through Hole
- Peak Non-Repetitive Surge Current (A) :
- 33
- Military :
- No
- Packaging :
- Ammo
- Package Length :
- 5.1
- HTS :
- 8541.10.00.80
- Supplier Temperature Grade :
- COMMERCIAL
- ECCN (US) :
- EAR99
- Pin Count :
- 2
- Datasheets
- SB150S
SB150S Documents
Ammo
SB150S Overview
The peak forward voltage on the datasheets is 0.7.Normally, this device consumes about 1@Ta=75C of continuous forward current.
SB150S Features
the forward peak voltage is 0.7
SB150S Applications
There are a lot of Diotec Semiconductor AG
SB150S applications of RF diodes.
- Diode ring mixer
- RF detector
- RF voltage doubler
- Wearables
- Smart metering
- Set top boxes
- RF attenuators and switches
- Low-loss, high-power limiters
- Receiver protectors
- UHF mixer
