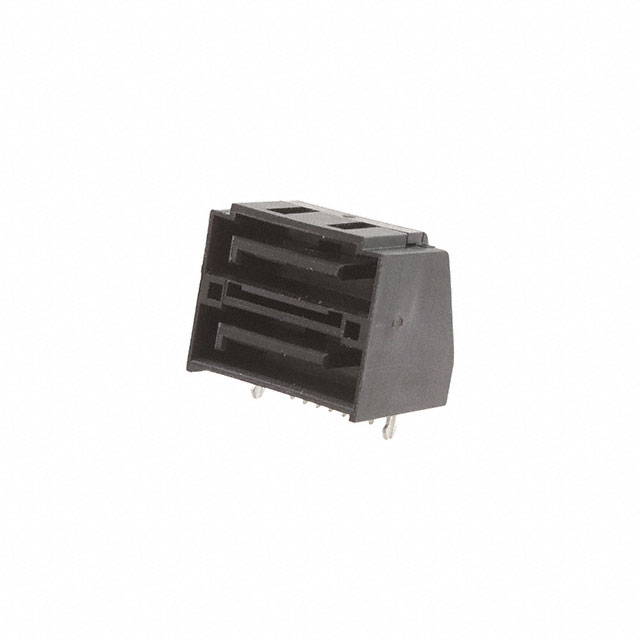

SATA-D-PL-RT

Manufacturer :

Adam Tech

Product Category :

Pluggable Connector Assemblies

Insulation Resistance :

1000000000Ohm

Contact Pattern :

RECTANGULAR

Terminal Pitch :

1.27mm

Polarization Key :

POLARIZED HOUSING

Termination :

Solder

HTS Code :

8536.69.40.30

Rated Current (Signal) :

1.5A

Mounting Type :

Through Hole, Right Angle

Contact Finish Thickness :

Flash

Insulation Material :

GLASS FILLED THERMOPLASTIC

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Mounting Option 1 :

LOCKING

PCB Contact Pattern :

RECTANGULAR

Operating Temperature (Min) :

-55°C

Contact Resistance :

30mOhm

Body Breadth :

0.549 inch

Insulator Color :

Black

Operating Temperature (Max) :

85°C

Number of Positions :

14

Contact Material :

Phosphor Bronze

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

TWO

Connector Style :

Plug, Shrouded, Stacked

Reference Standard :

UL, CSA

PCB Contact Row Spacing :

3.302 mm

Packaging :

Bulk

Connector Type :

SATA

Body Depth :

0.551 inch

Number of Rows :

1+1

ECCN Code :

EAR99

Contact Finish :

Gold

Body Length or Diameter :

0.63 inch

Dielectric Withstanding Voltage :

500VAC V

Factory Lead Time :

9 Weeks

Feature :

Board Lock

Number Of PCB Rows :

1+1

Contact Gender :

Male
