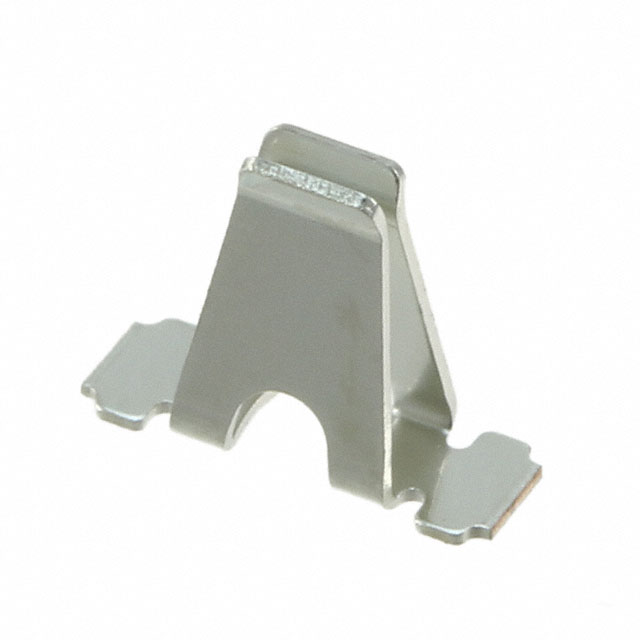

Images are for reference only.

Delivery：

Payment：

S9091-46R

Or copy the link below:

Mfr.Part #: S9091-46R

Manufacturer: Harwin

Package / Case

Datasheet: Download

Description: CONN PIN RCPT .031-.059 SMD

Stock: 52,204

In Stock ：: 52,204

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: Harwin
Product Category :: PC Pin Receptacles, Socket Connectors

RoHS Status :: ROHS3 Compliant

Length :: 4.318mm

Hole Diameter :: 3.81 mm

Contact Material :: Phosphor Bronze

Packaging :: Tape and Reel (TR)

Series :: EZ-Board

Operating Temperature :: -40°C~105°C

Published :: 2014

Contact Finish Thickness :: 160.0μin 4.06μm

Mounting Hole Diameter :: 0.150 (3.81mm)

Factory Lead Time :: 13 Weeks

Termination :: Surface Mount - Bottom Entry

Insertion Force :: 8.00N ~ 17.00N

Socket Depth :: 0.137 3.48mm

Contact Finish :: Tin

Accepts Square Pin Size :: 0.031 ~ 0.059 0.79mm ~ 1.50mm

Length - Overall :: 0.170 4.32mm

Moisture Sensitivity Level (MSL) :: 1 (Unlimited)

Tail Type :: Clip

ECCN Code :: EAR99

Connector Support Type :: CONNECTOR ACCESSORY

Accepts Pin Diameter :: 0.031 ~ 0.059 (0.79mm ~ 1.50mm)

Datasheets: S9091-46R

Introducing PC Pin Receptacles, Socket Connectors Harwin S9091-46R from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-40°C~105°C, S9091-46R pinout, S9091-46R datasheet PDF, S9091-46R amp .Beyond PC Pin Receptacles, Socket Connectors Harwin S9091-46R ,we also offer 0331-0-15-15-18-27-10-0, 8947-0-15-15-10-27-10-0, 8114-0-15-15-16-27-04-0, Our vast inventory has you covered. Contact us now for immediate solutions.

S9091-46R datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from Harwin Inc. stock available at Xinshop
