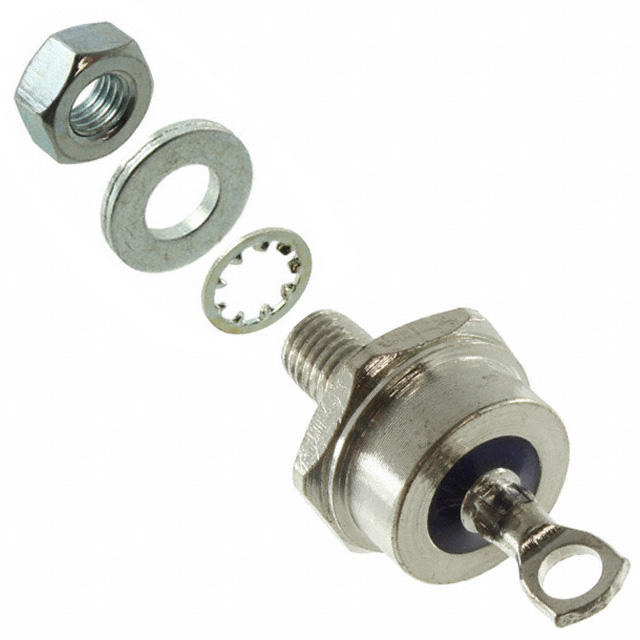

S85VR

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

Voltage - DC Reverse (Vr) (Max) :

1400V

Reverse Voltage :

1.4kV

Number of Terminations :

1

Element Configuration :

Single

Package / Case :

DO-203AB, DO-5, Stud

Factory Lead Time :

6 Weeks

Natural Thermal Resistance :

0.65 °C/W

Diode Type :

Standard, Reverse Polarity

Terminal Position :

UPPER

REACH SVHC :

No SVHC

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Max Repetitive Reverse Voltage (Vrrm) :

1.4kV

Terminal Form :

Solder Lug

Mounting Type :

Chassis, Stud Mount

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 85A

Application :

GENERAL PURPOSE

Operating Temperature - Junction :

-65°C~150°C

Current - Reverse Leakage @ Vr :

10μA @ 100V

Max Reverse Voltage (DC) :

1.4kV

Average Rectified Current :

85A

Pbfree Code :

yes

Packaging :

Bulk

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Pins :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Forward Voltage :

1.1V

RoHS Status :

RoHS Compliant

Number of Elements :

1

Diode Element Material :

SILICON

JESD-30 Code :

O-MUPM-D1

Operating Temperature (Max) :

150°C

Max Surge Current :

1.05kA

Mount :

Chassis, Stud

Case Connection :

ANODE

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Published :

2010

Speed :

Standard Recovery >500ns, > 200mA (Io)

Forward Current :

85A

Number of Phases :

1

Peak Reverse Current :

10μA
