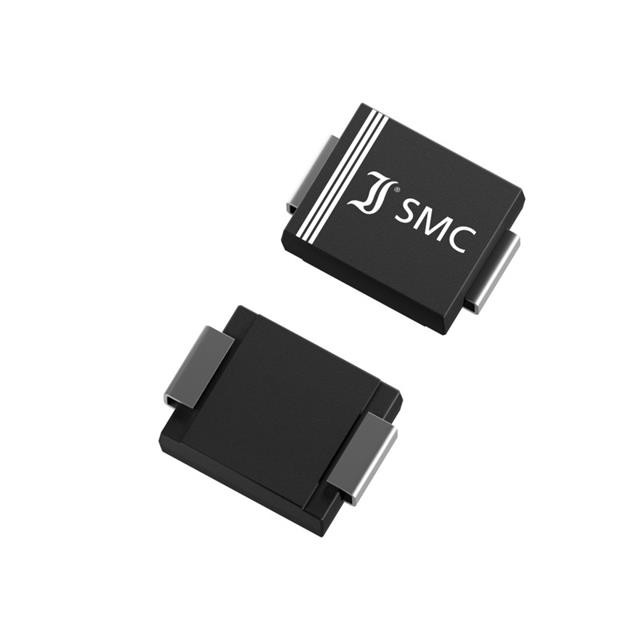

S3D

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Forward Current :

3A

Current Rating :

3A

Voltage - Rated DC :

200V

Factory Lead Time :

10 Weeks

Min Operating Temperature :

-55°C

Mounting Type :

Surface Mount

REACH SVHC :

No SVHC

Reverse Voltage :

200V

Package / Case :

DO-214AB, SMC

Peak Non-Repetitive Surge Current :

100A

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 3A

Width :

6.25mm

Operating Temperature - Junction :

-55°C~150°C

Element Configuration :

Single

Weight :

300mg

Length :

7.15mm

Max Surge Current :

100A

Base Part Number :

S3D

Number of Pins :

2

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Supplier Device Package :

SMC (DO-214AB)

Current - Reverse Leakage @ Vr :

5µA @ 200V

Recovery Time :

2.5 µs

Voltage - DC Reverse (Vr) (Max) :

200V

Average Rectified Current :

3A

Max Forward Surge Current (Ifsm) :

100A

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Diode Type :

Standard

Max Repetitive Reverse Voltage (Vrrm) :

200V

Published :

2013

Forward Voltage :

1.2V

Peak Reverse Current :

5μA

Height :

2.75mm

Max Reverse Voltage (DC) :

200V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

150°C

Speed :

Standard Recovery >500ns, > 200mA (Io)

Output Current :

3A

Radiation Hardening :

No

Mount :

Surface Mount

Polarity :

Standard

Current - Average Rectified (Io) :

3A

Power Dissipation :

2.6W

Packaging :

Tape and Reel (TR)

Capacitance @ Vr, F :

60pF @ 4V 1MHz

Reverse Recovery Time :

2.5 µs
