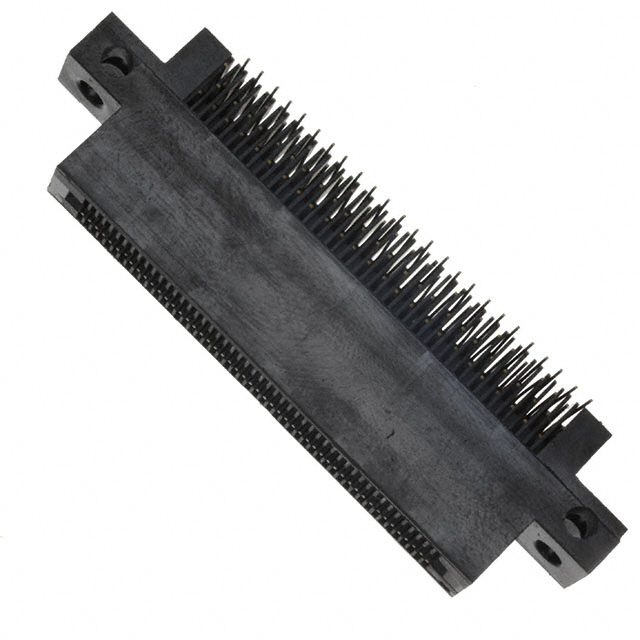

RZE50DHAS
Or copy the link below:
- Mfr.Part #
- RZE50DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 100POS 0.039
- Stock
- 33,363
- In Stock ：
- 33,363
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Number of Positions/Bay/Row :
- 50
- Body Depth :
- 0.86 inch
- Number of Rows :
- 2
- Card Type :
- Non Specified - Dual Edge
- Width :
- 9.4mm
- Length :
- 73.1mm
- Total Number of Contacts :
- 100
- Contact Type :
- Hairpin Bellows
- Operating Temperature :
- -65°C~125°C
- Reference Standard :
- UL
- Read Out :
- Dual
- Mount :
- Through Hole
- Housing Material :
- Plastic
- Insertion Force-Max :
- 1.668 N
- Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 10μin
- Reliability :
- COMMERCIAL
- Pitch :
- 0.039 1.00mm
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Mounting Type :
- Through Hole, Right Angle
- Lead Free :
- Contains Lead
- Packaging :
- Tray
- Termination :
- Solder, Staggered
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Card Thickness :
- 0.062 1.57mm
- Number Of PCB Rows :
- 4
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- Non-RoHS Compliant
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Rated Current (Signal) :
- 1A
- Gender :
- FEMALE
- Contact Finish :
- Gold
- Height :
- 9.14mm
- Color :
- Black
- Body Breadth :
- 0.37 inch
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Connector Type :
- Hairpin Bellows
- Published :
- 2003
- Number of Conductors :
- ONE
- Number of Positions :
- 100
- Datasheets
- RZE50DHAS
RZE50DHAS Documents
Female Black 0.039 1.00mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 100 Positions Polyphenylene Sulfide (PPS)
RZE50DHAS Overview
The material was packaged according to the specifications provided by Tray.You should mount it type Through Hole, Right Angle.Connecting the device uses connector socket Hairpin Bellows.
RZE50DHAS Features
RZE50DHAS Applications
There are a lot of Sullins Connector Solutions
RZE50DHAS Edgeboard Connectors applications.
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
