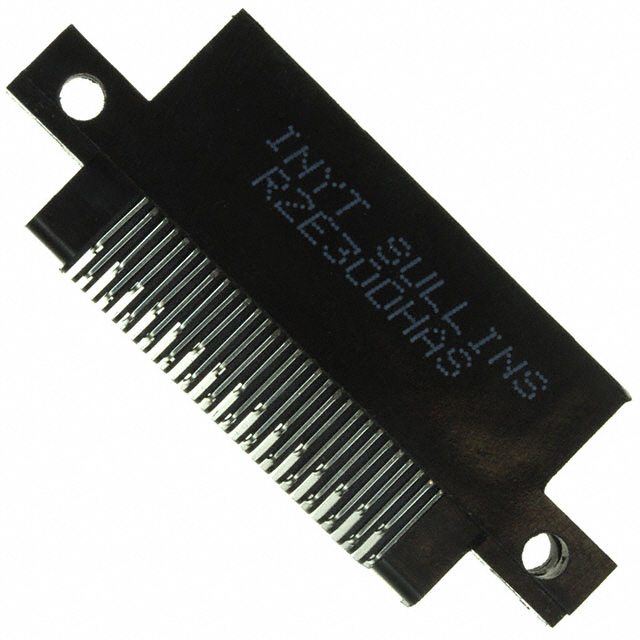

RZE30DHAS
Or copy the link below:
- Mfr.Part #
- RZE30DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 60POS 0.039
- Stock
- 25,369
- In Stock ：
- 25,369
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- RoHS Status :
- Non-RoHS Compliant
- Mount :
- Through Hole
- Number of Positions :
- 60
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder, Staggered
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1000000000Ohm
- Plating Thickness :
- 10μin
- Operating Temperature :
- -65°C~125°C
- Number Of PCB Rows :
- 4
- Flammability Rating :
- UL94 V-0
- Body Depth :
- 0.86 inch
- Rated Current (Signal) :
- 1A
- Contact Material :
- Phosphor Bronze
- Gender :
- FEMALE
- Card Type :
- Non Specified - Dual Edge
- Reference Standard :
- UL
- Contact Finish :
- Gold
- Packaging :
- Tray
- Insertion Force-Max :
- 1.668 N
- Card Thickness :
- 0.062 1.57mm
- Length :
- 531mm
- Width :
- 9.4mm
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Housing Material :
- Plastic
- Pitch :
- 0.039 1.00mm
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Total Number of Contacts :
- 60
- Connector Type :
- Hairpin Bellows
- Height :
- 9.14mm
- Read Out :
- Dual
- Contact Type :
- Hairpin Bellows
- Number of Positions/Bay/Row :
- 30
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Conductors :
- ONE
- Published :
- 2006
- Body Breadth :
- 0.37 inch
- Lead Free :
- Contains Lead
- Datasheets
- RZE30DHAS
Female Black 0.039 1.00mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 60 Positions Polyphenylene Sulfide (PPS)
RZE30DHAS Overview
Material was packaged in accordance with Tray's specifications.It's recommended to mount type Through Hole, Right Angle.The device is connected via the connector socket Hairpin Bellows.
RZE30DHAS Features
RZE30DHAS Applications
There are a lot of Sullins Connector Solutions
RZE30DHAS Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
