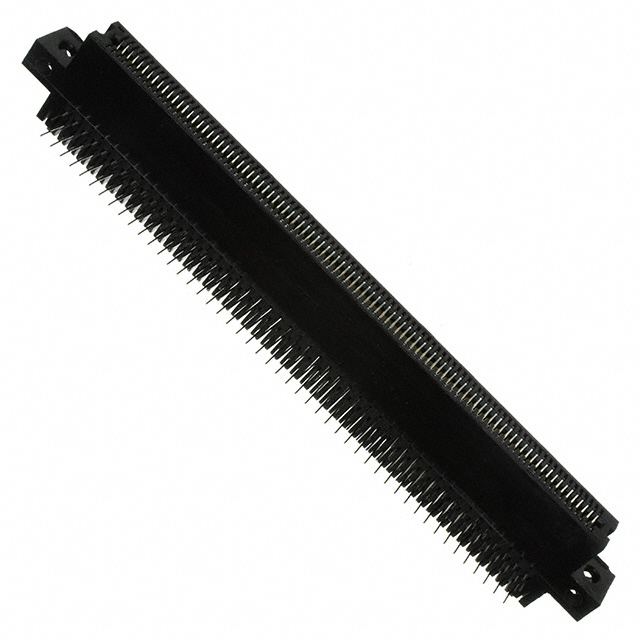

RZB95DHAS
Or copy the link below:
- Mfr.Part #
- RZB95DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 190POS 0.050
- Stock
- 37,549
- In Stock ：
- 37,549
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Lead Free :
- Contains Lead
- Number of Rows :
- 2
- Body Depth :
- 0.915 inch
- Contact Type :
- Hairpin Bellows
- HTS Code :
- 8536.69.40.40
- Total Number of Contacts :
- 190
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Packaging :
- Tray
- Reference Standard :
- UL, CSA
- Reliability :
- COMMERCIAL
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Number of Positions :
- 190
- Number Of PCB Rows :
- 4
- Card Type :
- Non Specified - Dual Edge
- Contact Material :
- Phosphor Bronze
- Read Out :
- Dual
- Published :
- 2003
- Additional Feature :
- NONE
- Gender :
- FEMALE
- Color :
- Black
- Mount :
- Through Hole
- Body Breadth :
- 0.37 inch
- JESD-609 Code :
- e0
- Length :
- 142mm
- Plating Thickness :
- 10μin
- ECCN Code :
- EAR99
- Housing Material :
- Plastic
- Insulation Resistance :
- 5000000000Ohm
- Pitch :
- 0.050 1.27mm
- Contact Resistance :
- 30mOhm
- Card Thickness :
- 0.062 1.57mm
- Number of Conductors :
- ONE
- Number of Positions/Bay/Row :
- 95
- Body/Shell Style :
- Receptacle
- Insertion Force-Max :
- 4.448 N
- Contact Finish :
- Gold
- Operating Temperature :
- -65°C~125°C
- Rated Current (Signal) :
- 1A
- Termination :
- Solder, Staggered
- Pbfree Code :
- No
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Hairpin Bellows
- Width :
- 9.4mm
- Height :
- 15.5mm
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- RZB95DHAS
RZB95DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 190 Positions Polyphenylene Sulfide (PPS)
RZB95DHAS Overview
Material was packaged according to Tray's specifications.It's best to mount type Through Hole, Right Angle.Devices are connected through connector sockets Hairpin Bellows.It is important to note that this chip has the following additional features: NONE
RZB95DHAS Features
RZB95DHAS Applications
There are a lot of Sullins Connector Solutions
RZB95DHAS Edgeboard Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
