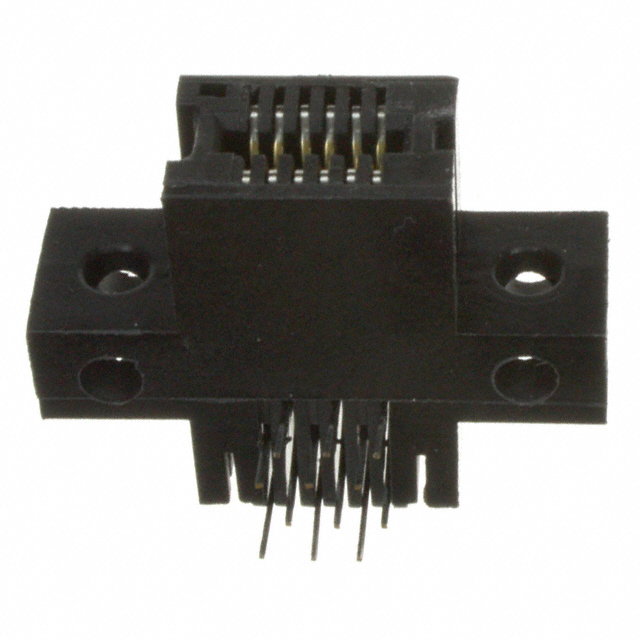

RZB06DHAS
Or copy the link below:
- Mfr.Part #
- RZB06DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 12POS 0.050
- Stock
- 9,881
- In Stock ：
- 9,881
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Body Depth :
- 0.915 inch
- Pbfree Code :
- No
- Additional Feature :
- NONE
- Read Out :
- Dual
- Width :
- 9.4mm
- Lead Free :
- Contains Lead
- Operating Temperature :
- -65°C~125°C
- JESD-609 Code :
- e0
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Insulation Resistance :
- 5000000000Ohm
- Contact Type :
- Hairpin Bellows
- ECCN Code :
- EAR99
- Mount :
- Through Hole
- Housing Material :
- Plastic
- Contact Resistance :
- 30mOhm
- Connector Type :
- Hairpin Bellows
- Insertion Force-Max :
- 4.448 N
- Height :
- 15.5mm
- Body/Shell Style :
- Receptacle
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Reference Standard :
- UL, CSA
- Number of Conductors :
- ONE
- Total Number of Contacts :
- 12
- Contact Finish Thickness :
- 10.0μin 0.25μm
- RoHS Status :
- Non-RoHS Compliant
- Termination :
- Solder, Staggered
- Rated Current (Signal) :
- 1A
- Contact Finish :
- Gold
- Gender :
- FEMALE
- Length :
- 29mm
- Contact Material :
- Phosphor Bronze
- Plating Thickness :
- 10μin
- Flammability Rating :
- UL94 V-0
- Number Of PCB Rows :
- 4
- Card Type :
- Non Specified - Dual Edge
- Pitch :
- 0.050 1.27mm
- Number of Rows :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Reliability :
- COMMERCIAL
- Number of Positions :
- 12
- Card Thickness :
- 0.062 1.57mm
- Number of Positions/Bay/Row :
- 6
- Color :
- Black
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Body Breadth :
- 0.37 inch
- Published :
- 2003
- Datasheets
- RZB06DHAS
RZB06DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 12 Positions Polyphenylene Sulfide (PPS)
RZB06DHAS Overview
We packaged the material in accordance with Tray's specifications.The mount type Through Hole, Right Angle is recommended.The device is connected with the connector socket Hairpin Bellows.It has the following additional features: NONE
RZB06DHAS Features
RZB06DHAS Applications
There are a lot of Sullins Connector Solutions
RZB06DHAS Edgeboard Connectors applications.
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
Manufacturer related products
Catalog related products
Related products
| Part | Manufacturer | Stock | Description |
|---|---|---|---|
| RZB06DHFR | Sullins Connector Solutions | 44,025 | CONN EDGE DUAL FMALE 12POS 0.050 |
| RZB06DHHN | Sullins Connector Solutions | 3,413 | CONN EDGE DUAL FMALE 12POS 0.050 |
| RZB06DHRN | Sullins Connector Solutions | 43,128 | CONN EDGE DUAL FMALE 12POS 0.050 |
