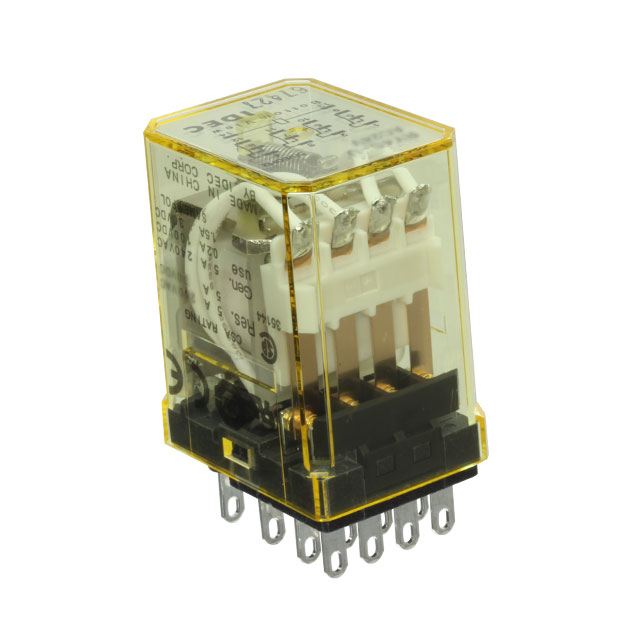

RY4S-UAC24V
Or copy the link below:
- Mfr.Part #
- RY4S-UAC24V
- Manufacturer
- IDEC
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 4PDT 5A 24V
- Stock
- 43,782
- In Stock ：
- 43,782
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- IDEC
- Product Category :
- Power Relays, Over 2 Amps
- Release Time :
- 20 ms
- Contact/Output Supply Type :
- AC/DC
- REACH SVHC :
- Unknown
- Length - Termination :
- 0.0064 inch
- Insulation Resistance :
- 100000000Ohm
- Body Length or Diameter :
- 27.5mm
- Mount :
- Socket
- Coil Type :
- Non Latching
- Approval Agency :
- CE, CSA, TUV, UL
- Switching Voltage :
- 240VAC 30VDC -Max
- Max Voltage Rating (AC) :
- 240V
- Mounting Type :
- Socketable
- Contact (AC) Max Rating R Load :
- 5A@240VAC
- HTS Code :
- 8536.41.00.20
- ECCN Code :
- EAR99
- Published :
- 2005
- Termination :
- PC Pin
- Throw Configuration :
- 4PDT
- Termination Style :
- Plug In
- Contact (AC) Max Rating I Load :
- 1.2A@240VAC
- Coil/Input Supply Type :
- AC
- Voltage - Rated AC :
- 240V
- Operating Temperature :
- -25°C~55°C
- Contact Form :
- 4PDT (4 Form C)
- Dielectric Strength Between Open Contacts :
- 2000 Vrms
- Relay Type :
- GENERAL PURPOSE
- Coil Voltage (AC) :
- 24V
- Must Operate Voltage :
- 19.2VAC
- Must Release Voltage :
- 7.2VAC
- Physical Dimension :
- 27.5mm x 21mm x 35.6mm
- RoHS Status :
- ROHS3 Compliant
- Number of Pins :
- 14
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Series :
- RY
- Coil Power :
- 900mW
- Factory Lead Time :
- 4 Weeks
- Width :
- 21mm
- Height :
- 35.6mm
- Max Current Rating :
- 5A
- Coil Resistance :
- 153Ohm
- Current Rating :
- 5A
- Reference Standard :
- CE; CSA; TUV; UL
- Contact Current(AC)-Max :
- 5A
- Operate Time :
- 20ms
- Electrical Life :
- 100000 Cycle(s)
- Power Rating :
- 1.2W
- Number of Terminations :
- 14
- Max Voltage Rating (DC) :
- 30V
- Contact Material :
- Silver (Ag), Gold (Au)
- Contact (DC) Max Rating R Load :
- 5A@30VDC
- Contact Resistance :
- 50mOhm
- Weight :
- 34g
- Coil Current :
- 50mA
- Contact Current(DC)-Max :
- 5A
- Dielectric Strength Between Coil and Contacts :
- 2000 Vrms
- Packaging :
- Bulk
- Coil Voltage :
- 24VAC
- Datasheets
- RY4S-UAC24V
