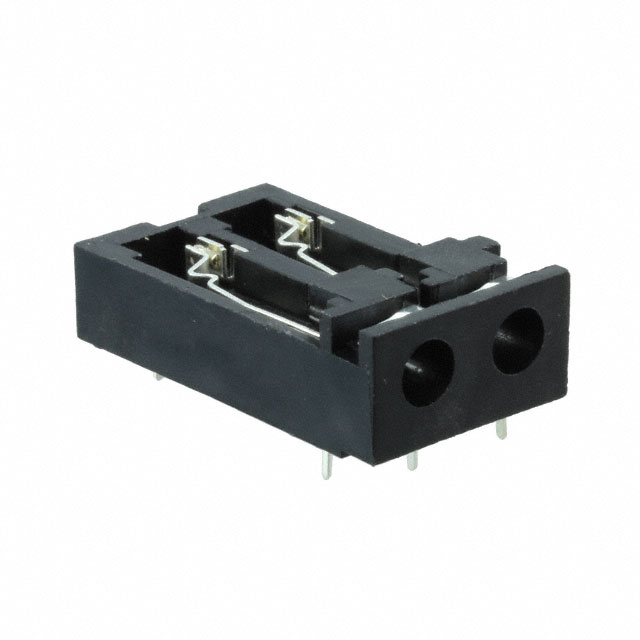

RTT8702X

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Contact Material :

COPPER ALLOY

Mount :

PCB, Through Hole

Industry Recognized Mating Diameter :

4.39mm (0.173)

Connector Type :

Phone Jack, Twin

Gender :

FEMALE

Housing Material :

Thermoplastic

Option :

GENERAL PURPOSE

Configuration :

1X1 HORIZONTAL

Published :

1998

DIN Conformance :

No

Internal Switch(s) :

2 Sets of Two Switches

Factory Lead Time :

8 Weeks

Shielding :

Unshielded

Insulation Color :

Black

Depth :

17.17mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Actual Diameter :

0.177 (4.48mm)

Number of Poles :

3

Contact Material - Plating :

Gold

Orientation :

RIGHT ANGLE

Number of Positions/Contacts :

2 Sets of 3 Conductors, 10 Contacts

Number of Contacts :

3

Operating Temperature :

-55°C~85°C

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

500V

Signal Lines :

Stereo (3 Conductor, TRS)

MIL Conformance :

No

Number of Ports :

2

IEC Conformance :

No

Termination :

Solder

Number of Positions Loaded :

10

Packaging :

Bulk

Length :

30.5mm

Mounting Type :

Through Hole, Right Angle

Series :

RTT
