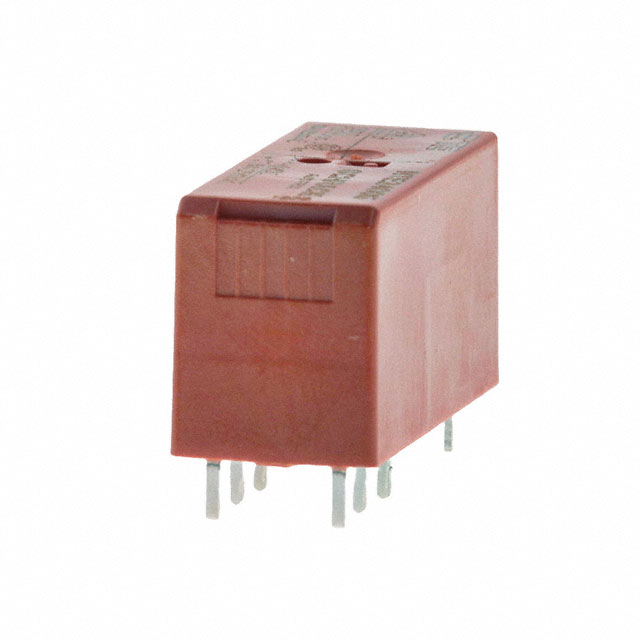

RTE24006

Share

Or copy the link below:

Mfr.Part #
RTE24006
Manufacturer
TE Connectivity Potter & Brumfield Relays
Package / Case
DIP
Datasheet
Download
Description
RELAY GEN PURPOSE DPDT 8A 6V
Stock
1,621
In Stock :
1,621

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity Potter & Brumfield Relays
Product Category :
Power Relays, Over 2 Amps
Weight :
13g
Voltage - Rated AC :
400V
REACH SVHC :
Unknown
Coil Voltage (AC) :
6V
Termination Style :
PC Pin
Height :
15.7mm
Seal Rating :
Sealed - Fully
Relay Type :
GENERAL PURPOSE
Max Operating Temperature :
85°C
Current Rating :
8A
Contact Rating (Current) :
8A
Coil Voltage :
6VDC
Throw Configuration :
DPDT
Contact Material :
Silver Nickel (AgNi)
Max Current Rating :
15A
Coil Power :
400mW
Approval Agency :
CSA, VDE, cULus
Contact Form :
DPDT (2 Form C)
Radiation Hardening :
No
Mount :
PCB, Through Hole
Depth :
12.7mm
Dropout Voltage :
600mV
Coil Type :
Non Latching
Operate Time :
8ms
Contact Voltage Rating (AC) :
250V
Factory Lead Time :
18 Weeks
Package / Case :
DIP
Lead Free :
Lead Free
Switching Voltage :
400VAC -Max
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
ELV :
Compliant
Must Release Voltage :
0.6VDC
Length :
29mm
Must Operate Voltage :
4.2VDC
Mounting Type :
Through Hole
Max Voltage Rating (AC) :
400V
RoHS Status :
RoHS Compliant
Number of Pins :
8
Coil Resistance :
90Ohms
Coil Insulation :
Class F
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Tube
Coil Voltage (DC) :
6V
Width :
12.7mm
Operating Temperature :
-40°C~85°C
Power Consumption :
400mW
Termination :
PC Pin, Plug
Coil Current :
66.7mA
Release Time :
6ms
Min Operating Temperature :
-40°C
Published :
2011
Series :
RT2, SCHRACK
Datasheets
RTE24006
Introducing Power Relays, Over 2 Amps TE Connectivity Potter & Brumfield Relays RTE24006 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:DIP, Mounting Type:Through Hole, Number of Pins:8, Operating Temperature:-40°C~85°C, RTE24006 pinout, RTE24006 datasheet PDF, RTE24006 amp .Beyond Power Relays, Over 2 Amps TE Connectivity Potter & Brumfield Relays RTE24006 ,we also offer MY4 DC24 (S), MY4 DC12 (S), ST2-DC5V-F, Our vast inventory has you covered. Contact us now for immediate solutions.
