RT314006

Share

Or copy the link below:

Mfr.Part #
RT314006
Manufacturer
TE Connectivity Potter & Brumfield Relays
Package / Case
Datasheet
Download
Description
RELAY GEN PURPOSE SPDT 16A 6V
Stock
1,257
In Stock :
1,257

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity Potter & Brumfield Relays
Product Category :
Power Relays, Over 2 Amps
Published :
2012
Termination Style :
PC Pin
Surface Mount :
No
Contact Voltage(DC)-Max :
24V
Dielectric Strength Between Open Contacts :
1000 Vrms
Coil Resistance :
90Ohm
Coil Current :
66.7mA
Contact Form :
SPDT (1 Form C)
Contact Voltage(AC)-Max :
400V
Operating Temperature :
-40°C~85°C
PCB Hole Count :
8
Release Time :
6ms
Contact/Output Supply Type :
AC
HTS Code :
8536.41.00.50
Operate Time :
8ms
Mounting Type :
Through Hole
Sealing :
RT2
Must Operate Voltage :
4.2VDC
Relay Type :
GENERAL PURPOSE
Seal Rating :
Sealed - Flux Protection
Weight :
14g
Packing Method :
Bulk
Relay Action :
Momentary
Length - Termination :
0.0036 inch
Physical Dimension :
29mm x 12.7mm x 15.7mm
RoHS Status :
RoHS Compliant
Contact Rating (Current) :
16A
Coil/Input Supply Type :
DC
ECCN Code :
EAR99
Contact (AC) Max Power Rating R Load :
4000VA@400VAC
Electrical Life :
6000 Cycle(s)
Coil Insulation :
Class F
Coil Voltage :
6VDC
Reference Standard :
BEAB; CSA; UL; VDE
Factory Lead Time :
18 Weeks
Switching Voltage :
400VAC -Max
Input Switching Control Type :
Random
Body Length or Diameter :
29mm
Body Breadth :
12.7 mm
Number of Terminations :
8
Body Height :
15.7mm
Coil Power :
400mW
Must Release Voltage :
0.6VDC
Moisture Sensitivity Level (MSL) :
Not Applicable
Packaging :
Tube
Series :
RT1, SCHRACK
Contact Material :
Silver Nickel (AgNi)
Dielectric Strength Between Coil and Contacts :
5000 Vrms
Coil Type :
Non Latching
Datasheets
RT314006
Introducing Power Relays, Over 2 Amps TE Connectivity Potter & Brumfield Relays RT314006 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Through Hole, Number of Terminations:8, RT314006 pinout, RT314006 datasheet PDF, RT314006 amp .Beyond Power Relays, Over 2 Amps TE Connectivity Potter & Brumfield Relays RT314006 ,we also offer MY4 DC24 (S), MY4 DC12 (S), ST2-DC5V-F, Our vast inventory has you covered. Contact us now for immediate solutions.

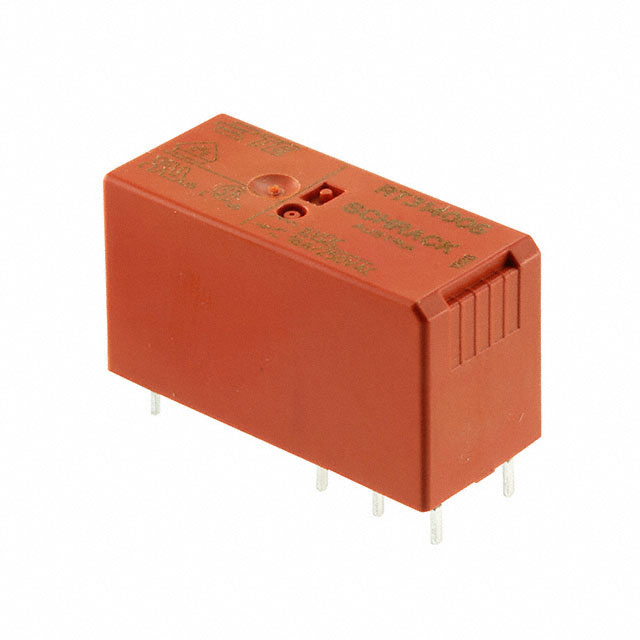

TE Connectivity Potter & Brumfield Relays RT314006


RT314006 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Potter & Brumfield Relays stock available at
