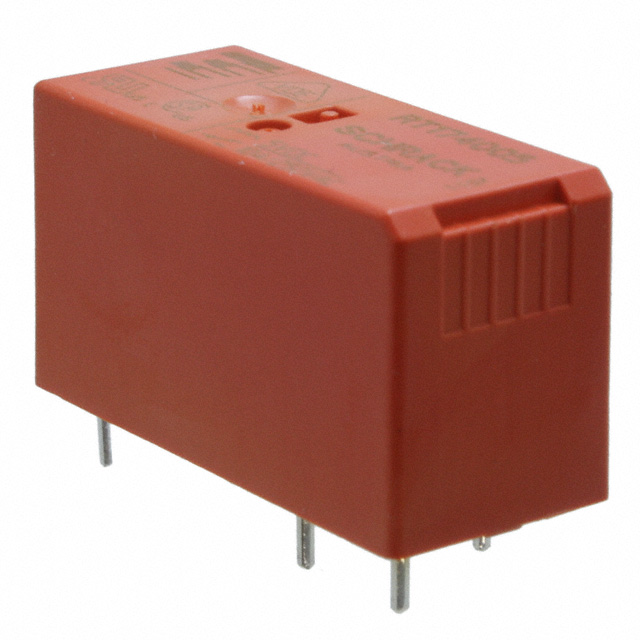

RT174005
Or copy the link below:
- Mfr.Part #
- RT174005
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 10A 5V
- Stock
- 1,185
- In Stock ：
- 1,185
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Operate Time :
- 10ms
- Contact Voltage(AC)-Max :
- 250V
- Contact Material :
- Silver Nickel (AgNi)
- Operating Temperature :
- -40°C~85°C
- Seal Rating :
- Sealed - Flux Protection
- Relay Action :
- Momentary
- Reference Standard :
- UL; VDE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Weight :
- 14g
- Termination Style :
- PC Pin
- Coil Resistance :
- 100Ohm
- Physical Dimension :
- 29mm x 12.7mm x 15.7mm
- Mounting Type :
- Through Hole
- Relay Type :
- GENERAL PURPOSE
- Coil Insulation :
- Class F
- Contact Form :
- SPDT (1 Form C)
- Body Breadth :
- 12.7 mm
- Length - Termination :
- 0.0036 inch
- Switching Voltage :
- 400VAC -Max
- PCB Hole Count :
- 5
- Contact Rating (Current) :
- 10A
- Packing Method :
- Box
- Input Switching Control Type :
- Random
- Body Length or Diameter :
- 29mm
- Coil Current :
- 50mA
- Factory Lead Time :
- 21 Weeks
- Contact (AC) Max Power Rating R Load :
- 2500VA@400VAC
- Coil Operate Voltage(DC) :
- 3.7V
- Number of Terminations :
- 5
- ECCN Code :
- EAR99
- Must Operate Voltage :
- 3.75VDC
- Contact/Output Supply Type :
- AC
- Packaging :
- Tube
- Published :
- 2014
- RoHS Status :
- RoHS Compliant
- Series :
- RT1, SCHRACK
- Body Height :
- 15.7mm
- Coil Type :
- Non Latching
- Release Time :
- 8ms
- Surface Mount :
- No
- Must Release Voltage :
- 0.5VDC
- Dielectric Strength Between Open Contacts :
- 1000 Vrms
- Coil Power :
- 250mW
- Mounting Feature :
- SOCKET MOUNT
- Coil/Input Supply Type :
- DC
- Dielectric Strength Between Coil and Contacts :
- 5000 Vrms
- Coil Voltage :
- 5VDC
- Datasheets
- RT174005
RT174005 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Potter & Brumfield Relays stock available at
