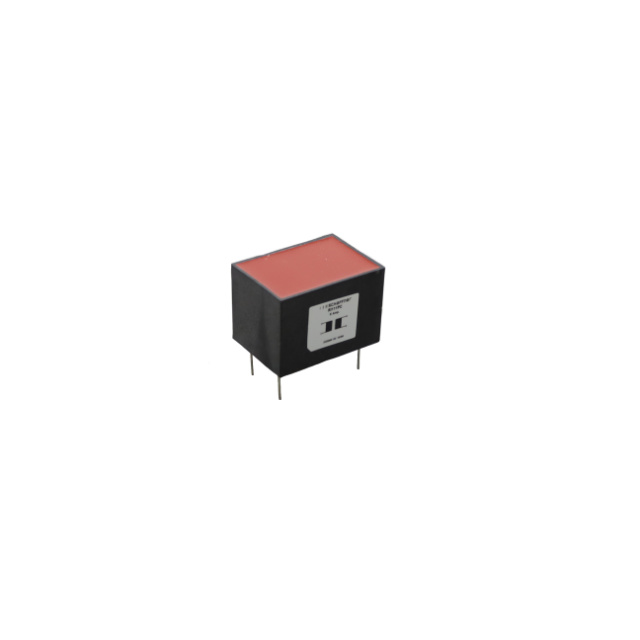

RI111PC

Manufacturer :

Schaffner EMC, Inc.

Product Category :

Common Mode Chokes

Lead/Base Style :

Pin

Voltage - Rated AC :

500V

Lead Diameter :

1.15 mm

Current Rating (Max) :

6A Typ

Filter Type :

Power Line

Current Rating :

6A

RoHS Status :

RoHS Compliant

HTS Code :

8504.50.80.00

Packaging :

Tray

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Shape/Size Description :

RECTANGULAR PACKAGE

Operating Temperature :

-25°C~110°C

Size / Dimension :

1.929Lx1.378W 49.00mmx35.00mm

Series :

RI

ECCN Code :

EAR99

Terminal Shape :

Wire

Tolerance :

15%

Depth :

35.3mm

Mount :

Through Hole

Shielding :

No

Military Standard :

Not

Inductor Application :

RF INDUCTOR

Mounting Type :

Through Hole

Terminal Placement :

DUAL IN-LINE

Factory Lead Time :

10 Weeks

Package / Case :

Vertical, 4 PC Pin

Inductance :

3 mH

Inductor Type :

GENERAL PURPOSE INDUCTOR

Max DC Current :

6A

Lead Pitch :

40mm

Test Frequency :

0.001MHz

Termination :

Radial

DC Current :

6A

Height :

34mm

Radiation Hardening :

No

DC Resistance (DCR) (Max) :

42mOhm Typ

Number of Lines :

2

Published :

2016
