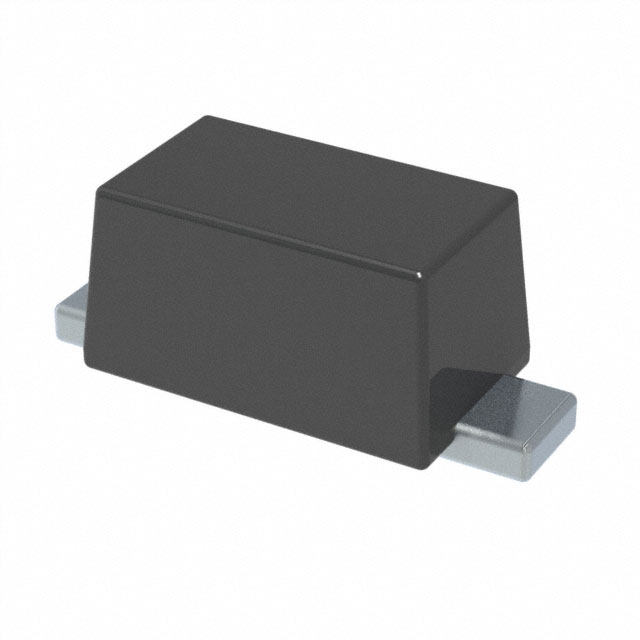

RB520G-30-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Rectifiers - Single

Mounting Type :

Surface Mount

Terminal Position :

Dual

RoHS Status :

ROHS3 Compliant

Diode Element Material :

SILICON

Qualification Status :

Not Qualified

JESD-30 Code :

R-PDSO-F2

Speed :

Small Signal =< 200mA (Io), Any Speed

Pin Count :

2

HTS Code :

8541.10.00.70

Number of Elements :

1

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

10

Configuration :

Single

Base Part Number :

RB520G-30

Voltage - DC Reverse (Vr) (Max) :

30V

Additional Feature :

High Reliability

Terminal Form :

Flat

Peak Reflow Temperature (Cel) :

260

Operating Temperature (Max) :

125°C

Packaging :

Tape and Reel (TR)

Package / Case :

SOD-723

Current - Average Rectified (Io) :

100mA

Current - Reverse Leakage @ Vr :

500nA @ 10V

Diode Type :

Schottky

JESD-609 Code :

e3

Voltage - Forward (Vf) (Max) @ If :

450mV @ 10mA

Output Current-Max :

0.1A

Terminal Finish :

Matte Tin (Sn)

Operating Temperature - Junction :

125°C Max

Pbfree Code :

yes

Published :

2008

Factory Lead Time :

12 Weeks

Number of Terminations :

2

Surface Mount :

yes
