RASPC10S

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Factory Lead Time :

12 Weeks

Actual Diameter :

0.079 (2.00mm ID), 0.252 (6.40mm OD)

Contact Material :

COPPER ALLOY

ECCN Code :

EAR99

Voltage - Rated DC :

24V

Insulation Resistance :

1GOhm

REACH SVHC :

Unknown

Mounting Type :

Through Hole

Gender :

Male

Includes :

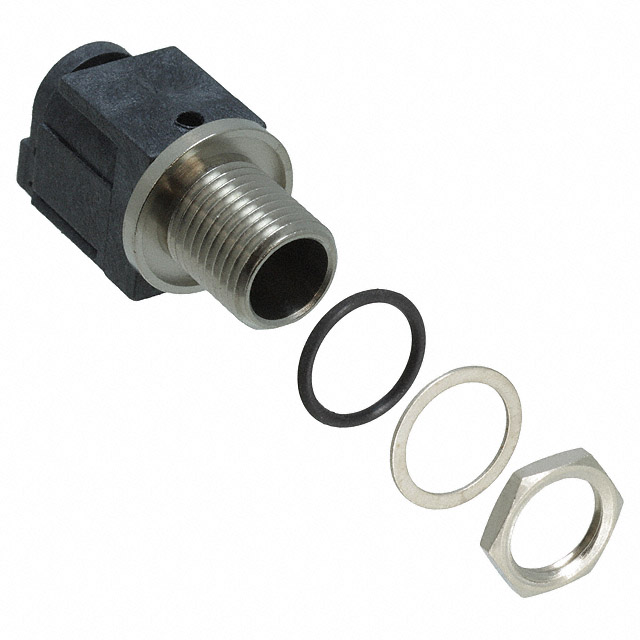

4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Number of Ports :

1

Thread Size :

5/16-32

Packaging :

Bulk

HTS Code :

8536.69.40.20

Shielding :

Unshielded

Internal Switch(s) :

Single Switch, Normally Closed

Mounting Feature :

Bulkhead - Front Side Nut

Ingress Protection :

IP68

Contact Material - Plating :

Tin

Current Rating :

10A

Current Rating (Amps) :

11A

Termination :

Solder

Body Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Housing Material :

Thermoplastic

Operating Temperature :

-40°C~105°C

Published :

2013

Contact Gender :

FEMALE

Connector Type :

JACK
