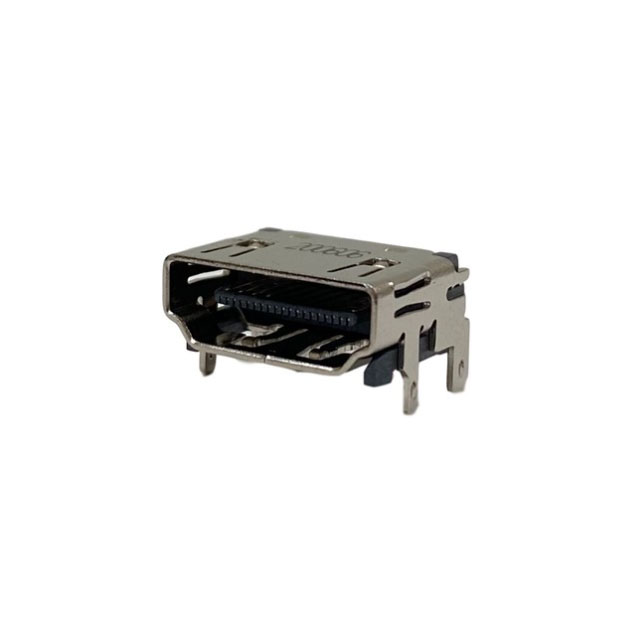

RAHHD19TR

Share

Or copy the link below:

Mfr.Part #
RAHHD19TR
Manufacturer
Switchcraft / Conxall
Package / Case
Datasheet
Download
Description
HDMI TYPE A RECEPTACLE, HORIZONT
Stock
1,388
In Stock :
1,388

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Switchcraft / Conxall
Product Category :
USB, DVI, HDMI Connector Assemblies
Package :
Digi-Reel?
Color :
Black
Manufacturer :
Switchcraft
Product Category :
HDMI, Displayport and DVI Connectors
Base Product Number :
RAHHD1
Minimum Operating Temperature :
- 25 C
Termination Style :
SMD/SMT
Specifications :
HDMI 2.0
Product Type :
HDMI, Displayport and DVI Connectors
Packaging :
Cut Tape
Series :
-
Shielding :
Shielded
Product Status :
Active
Mating Cycles :
5000
ECCN :
EAR99
Voltage Rating :
40 V
Shell/Shielding Material :
Brass
Mounting Feature :
Horizontal
Voltage - Rated :
40V
Brand :
Switchcraft
Housing Material :
Liquid Crystal Polymer (LCP)
Connector Type :
HDMI
Orientation :
RIGHT ANGLE
Gender :
Receptacle
Contact Termination :
Surface Mount Right Angle
Number of Contacts :
19
Itar Registered :
Unavailable
Operating Temperature :
-25°C ~ 85°C
Subcategory :
Audio and Video Connectors
Shell Material :
Brass
Termination :
Solder
Number of Positions :
19 Position
Features :
Board Guide
Mounting Type :
Surface Mount, Right Angle; Through Hole
Current Rating (Amps) :
0.5A
Contact Plating :
Gold Flash Plated Contacts
Ingress Protection :
-
Insulation Color :
Black
Material Flammability Rating :
-
Product :
HDMI
Number of Ports :
1
Contact Material :
Brass
Mounting Style :
PCB Mount
RoHS :
Details
Contact Finish :
Gold
Maximum Operating Temperature :
+ 85 C
Introducing USB, DVI, HDMI Connector Assemblies Switchcraft / Conxall RAHHD19TR from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-25°C ~ 85°C, Mounting Type:Surface Mount, Right Angle; Through Hole, RAHHD19TR pinout, RAHHD19TR datasheet PDF, RAHHD19TR amp .Beyond USB, DVI, HDMI Connector Assemblies Switchcraft / Conxall RAHHD19TR ,we also offer 10103592-0001LF, DX4R005HJ5R2000, USB3131-30-0230-A, Our vast inventory has you covered. Contact us now for immediate solutions.
