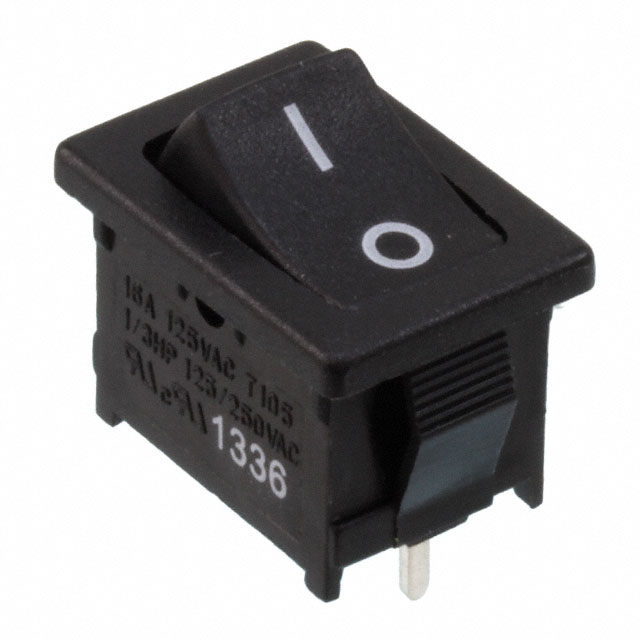

RA131C1121
Or copy the link below:
- Mfr.Part #
- RA131C1121
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROCKER SPST 16A 125V
- Stock
- 68
- In Stock ：
- 68
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- PCB Hole Count :
- 2
- Mount :
- Panel, Snap in
- RoHS Status :
- ROHS3 Compliant
- Color - Actuator/Cap :
- Black
- Switch Function :
- On-Off
- ECCN Code :
- EAR99
- Lead Free :
- Lead Free
- Actuator Marking :
- O -
- Termination Style :
- PC Pin
- Contact Function :
- Off-On
- Body Height :
- 12.5984mm
- Switch Type :
- ROCKER SWITCH
- Contact (AC) Max Rating R Load :
- 11A@125VAC
- Body Breadth :
- 12.9032 mm
- Length - Termination :
- 0.126 inch
- Contact Current Rating :
- 16A
- Actuator Type :
- Concave (Curved)
- Operating Temperature :
- -20°C~55°C
- Packaging :
- Bulk
- Actuator Length :
- 0.236 inch
- Insulation Material :
- Polyamide
- Panel Cutout Dimensions :
- Rectangular - 19.40mm x 13.10mm
- Body Length or Diameter :
- 18.4912mm
- Terminal Material :
- Copper
- Contact Resistance :
- 0.035mOhm
- Voltage - Rated AC :
- 125V
- Mounting Type :
- Panel Mount, Snap-In
- Circuit :
- SPST
- Contact Current(AC)-Max :
- 11A
- Electrical Life :
- 10,000 Cycles
- Dielectric Withstanding Voltage :
- 1500VAC V
- Factory Lead Time :
- 9 Weeks
- Published :
- 1997
- Current Rating (Amps) :
- 16A AC
- Insulation Resistance :
- 100000000Ohm
- Current Rating :
- 16A
- Termination :
- PC Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- RA1, LAMB
- Datasheets
- RA131C1121
