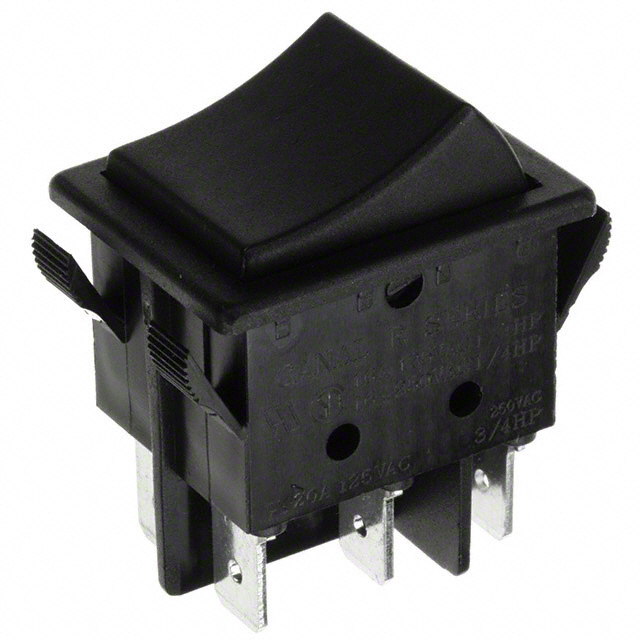

R2201C2NBB
Or copy the link below:
- Mfr.Part #
- R2201C2NBB
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROCKER DPDT 20A 125V
- Stock
- 15,246
- In Stock ：
- 15,246
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Orientation :
- Straight
- Operating Temperature :
- -20°C~125°C
- Body Length or Diameter :
- 32mm
- Contact Resistance :
- 20mOhm
- Contact Current Rating :
- 16A
- JESD-609 Code :
- e4
- Voltage - Rated AC :
- 125V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Panel Cutout Dimensions :
- Rectangular - 30.00mm x 22.00mm
- Series :
- R
- Actuator Type :
- Concave (Curved)
- Mounting Type :
- Panel Mount, Snap-In
- Mount :
- Panel, Snap in
- Factory Lead Time :
- 14 Weeks
- Body Height :
- 29mm
- Termination :
- Quick Connect
- Lead Free :
- Lead Free
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- Switch Function :
- On-On
- Max Voltage Rating (AC) :
- 250V
- Packaging :
- Bulk
- Current Rating (Amps) :
- 20A AC
- Body Breadth :
- 21.5 mm
- Contact (AC) Max Rating R Load :
- 20A@125VAC
- RoHS Status :
- ROHS3 Compliant
- Actuator Marking :
- No Marking
- HTS Code :
- 8536.50.90.65
- Contact Material :
- Cadmium, Silver
- Current Rating :
- 20A
- Circuit :
- DPDT
- Actuator Material :
- Nylon
- Electrical Life :
- 10,000 Cycles
- Color - Actuator/Cap :
- Black
- Datasheets
- R2201C2NBB
