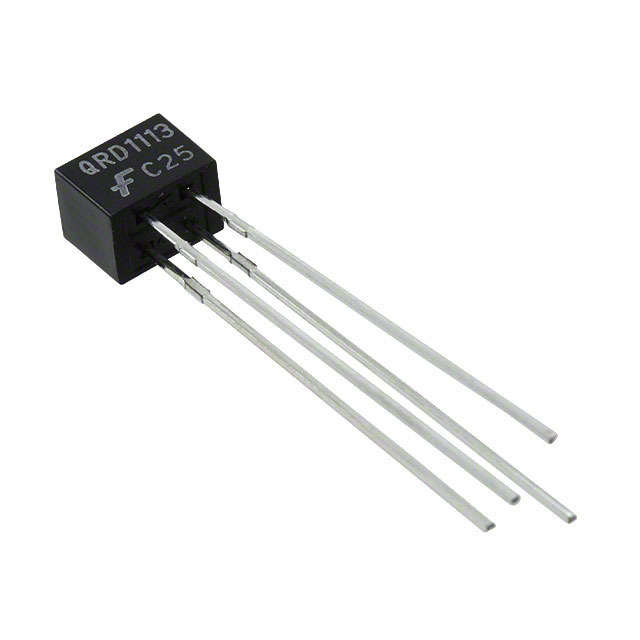

QRD1113

Manufacturer :

onsemi

Product Category :

Optical Sensors - Reflective - Analog Output

Sensing Distance :

0.050 (1.27mm)

RoHS Status :

ROHS3 Compliant

Forward Voltage :

1.7V

Contact Plating :

Tin

Published :

2013

Rise Time :

10μs

Max Collector Current :

300μA

ECCN Code :

EAR99

Collector Emitter Breakdown Voltage :

30V

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Lead Free :

Lead Free

Input Current :

20mA

Packaging :

Bulk

Output Voltage :

30V

Operating Supply Voltage :

1.7V

Sensors/Transducers Type :

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Pbfree Code :

yes

Number of Pins :

4

Forward Current :

50mA

Wavelength :

940 nm

Collector Emitter Voltage (VCEO) :

30V

Factory Lead Time :

22 Weeks

Response Time :

10μs, 50μs

REACH SVHC :

No SVHC

Number of Channels :

1

Radiation Hardening :

No

Reverse Voltage (DC) :

5V

Power Dissipation :

100mW

Voltage - Rated DC :

30V

Mount :

Through Hole

Sensing Method :

Reflective

Reverse Breakdown Voltage :

5V

Termination Type :

Solder

Operating Temperature :

-40°C~85°C

Package / Case :

Radial - 4 Leads

Mounting Type :

Through Hole

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

Phototransistor

Housing :

Plastic

Weight :

0g

Fall Time (Typ) :

50 µs
