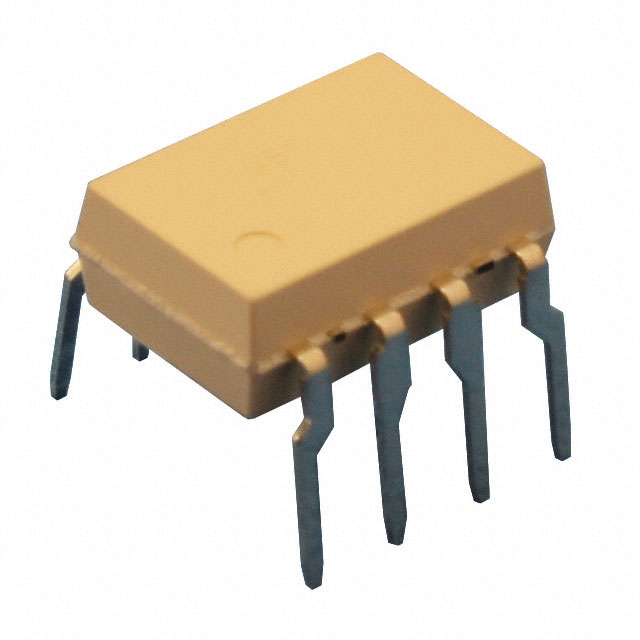

PS9505-AX

Manufacturer :

Intersil (Renesas Electronics Corporation)

Product Category :

Isolators - Gate Drivers

Number of Channels :

1

Supply Voltage :

30V

Current - Output High, Low :

2A 2A

Operating Temperature :

-40°C~110°C

Factory Lead Time :

16 Weeks

Forward Current-Max :

0.025A

Packaging :

Strip

Propagation Delay tpLH / tpHL (Max) :

250ns, 250ns

Current - Peak Output :

2.5A

Mounting Feature :

Surface Mount

Package / Case :

8-DIP (0.300, 7.62mm)

Pbfree Code :

yes

Current - DC Forward (If) (Max) :

25mA

JESD-609 Code :

e4

Number of Elements :

1

Voltage - Isolation :

5000Vrms

Lead Free :

Lead Free

Pulse Width Distortion (Max) :

100ns

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Surface Mount :

yes

Rise / Fall Time (Typ) :

50ns 50ns

RoHS Status :

ROHS3 Compliant

Common Mode Transient Immunity (Min) :

25kV/μs

Voltage - Forward (Vf) (Typ) :

1.56V

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Approval Agency :

CSA, SEMKO, UL

Power Dissipation-Max :

0.3W

Published :

2012

Response Time :

2.5e-7 ns

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole
