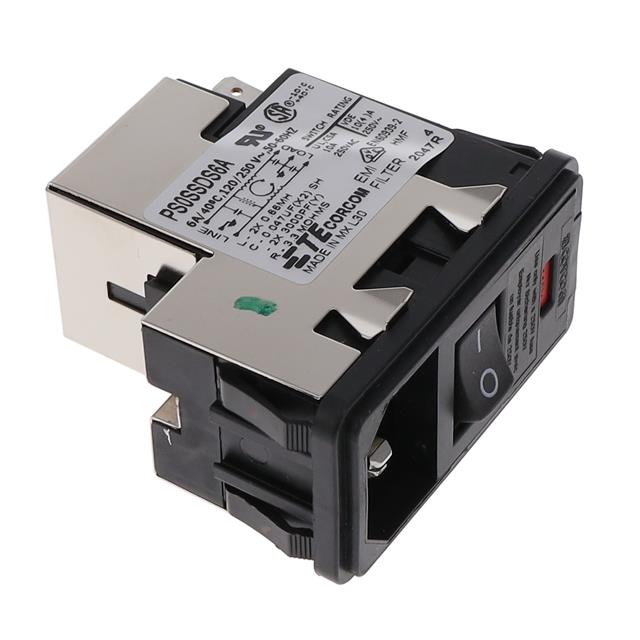

PS0SSDS6A

Manufacturer :

TE Connectivity Corcom Filters

Product Category :

Power Entry Modules (PEM)

Lead Free :

Lead Free

Gender :

Male

Accomodates a Fuse :

Yes (Fuse Not Included)

Switch Type :

2-Pole Switch

Max Voltage Rating (AC) :

250V

Panel Cutout Dimensions :

Variable Size

Package / Case :

Module

Height :

58.67mm

Width :

31.5mm

Current - UL :

6A

Length :

31.49mm

Number of Contacts :

3

Factory Lead Time :

25 Weeks

Switch Features :

Switch On-Off

Depth :

55.63mm

IP Rating :

-

Moisture Sensitivity Level (MSL) :

Not Applicable

Min Operating Temperature :

-10°C

Max Current Rating :

6A

Current - IEC :

6A

Feature :

Shielded, Voltage Selector

Published :

2004

Current :

6A

Radiation Hardening :

No

Series :

P, Corcom

Fuse Holder, Drawer :

Fuse Holder, Twin Fused

Voltage - Rated :

250V

REACH SVHC :

Unknown

Fuse :

yes

Frequency :

30MHz

Number of Positions :

3

Connector Type :

Receptacle, Male Blades - Module

Approval Agency :

CSA, UL, VDE

Mount :

Panel, Snap in

Voltage - Rated DC :

250V

Termination :

Quick Connect - 0.187 (4.7mm)

Voltage Rating :

250VAC

Packaging :

Bulk

Panel Thickness :

0.031 ~ 0.114 0.79mm ~ 2.90mm

Connector Style :

IEC 320-C14

RoHS Status :

RoHS Compliant

Mounting Type :

Panel Mount, Snap-In

Max Operating Temperature :

40°C

Filter Type :

Filtered (EMI, RFI) - Commercial

Orientation :

Straight

Current Rating :

6A

Voltage - UL :

250VAC

Voltage - IEC :

120VAC

Voltage - Rated AC :

250V

Number of Ports :

1
