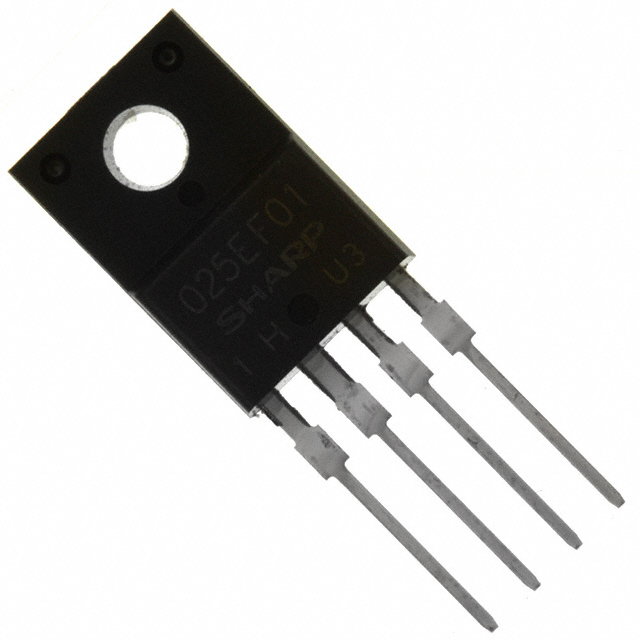

PQ025EF01SZH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-609 Code :

e2

Packaging :

Tube

Number of Terminations :

4

Output Configuration :

Positive

Current - Quiescent (Iq) :

2mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Output :

1A

PSRR :

60dB (120Hz)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Output Voltage 1 :

2.5V

Operating Temperature :

-40°C~85°C

Number of Regulators :

1

Dropout Voltage :

500mV

Voltage - Input (Max) :

10V

RoHS Status :

RoHS Compliant

Qualification Status :

Not Qualified

Package / Case :

TO-220-4

Terminal Position :

Single

Lead Free :

Lead Free

Number of Functions :

1

Terminal Finish :

TIN COPPER

Published :

2006

Max Power Dissipation :

15W

Protection Features :

Over Current, Over Temperature

Input Bias Current :

1mA

JESD-30 Code :

R-PSFM-T4

Output Type :

FIXED

Mount :

Through Hole

Min Input Voltage :

3V

Reach Compliance Code :

Unknown

Output Voltage :

2.5V

Control Features :

Enable

Mounting Type :

Through Hole
