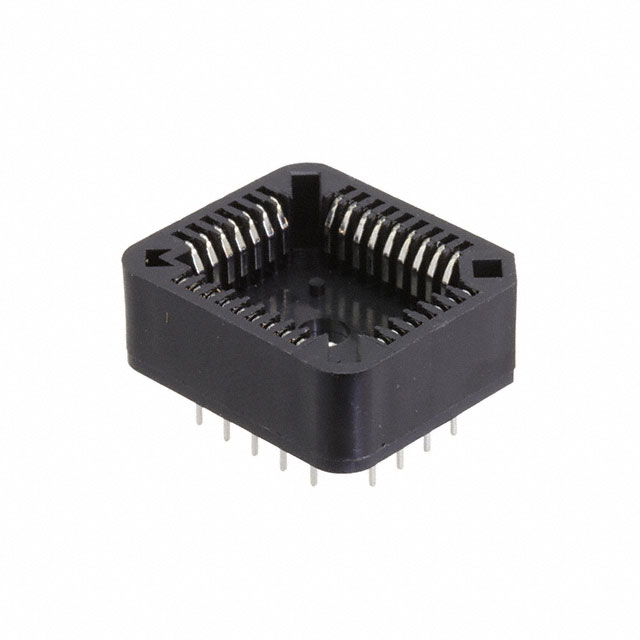

PLCC-32-AT
Or copy the link below:
- Mfr.Part #
- PLCC-32-AT
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- PLCC 32P THROUGH HOLE
- Stock
- 231
- In Stock ：
- 231
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- IC Sockets
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Pitch - Post :
- 0.100 2.54mm
- Contact Style :
- BELLOWED TYPE
- Flammability Rating :
- UL94 V-0
- Packaging :
- Tube
- Lead Pitch :
- 2.54mm
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 32
- Factory Lead Time :
- 9 Weeks
- Current Rating (Amps) :
- 1A
- Termination Post Length :
- 0.126 3.20mm
- Mounting Type :
- Through Hole
- Contact Material - Mating :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Contact Resistance :
- 30mOhm
- Insulation Resistance :
- 1000000000Ohm
- Feature :
- Closed Frame
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Pins :
- 32
- Pitch - Mating :
- 0.050 1.27mm
- Contact Material - Post :
- Phosphor Bronze
- Lead Free :
- Lead Free
- Contact Configuration :
- 9X7
- Body Depth :
- 0.181 inch
- Contact Material :
- Bronze
- Termination :
- Solder
- Device Socket Type :
- IC SOCKET
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Series :
- PLCC
- Operating Temperature :
- -55°C~105°C
- Number of Positions or Pins (Grid) :
- 32 (2 x 7, 2 x 9)
- Contact Finish - Mating :
- Tin
- Body Breadth :
- 0.715 inch
- Body Length or Diameter :
- 0.815 inch
- Datasheets
- PLCC-32-AT
