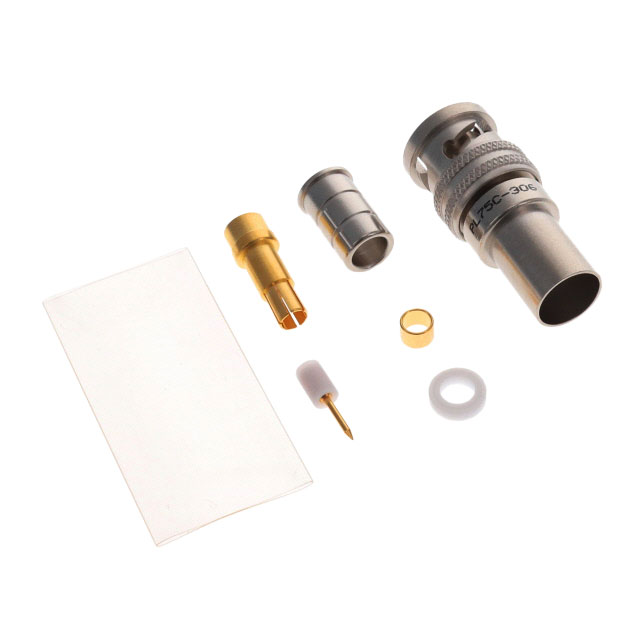

PL75C-306
Or copy the link below:
- Mfr.Part #
- PL75C-306
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN TRB PLUG STR CRIMP
- Stock
- 87
- In Stock ：
- 87
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Coaxial Connector (RF) Assemblies
- Includes :
- 2 pcs - 1 Connector, 1 Strain Relief
- Additional Feature :
- POLARIZED
- Packaging :
- Bulk
- Factory Lead Time :
- 8 Weeks
- Body Material :
- Brass
- Mating Cycles :
- 500
- Contact Termination :
- Crimp
- IEC Conformance :
- No
- Fastening Type :
- Bayonet Lock
- DIN Conformance :
- No
- Mount :
- Cable, Free Hanging
- Housing Color :
- Silver
- Feature :
- Three Lug
- Center Contact Plating :
- Gold
- Mounting Type :
- Free Hanging (In-Line)
- Frequency :
- 500MHz
- Filter Feature :
- No
- Series :
- 70
- Contact Material :
- Copper
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Number of Ports :
- 1
- Voltage - Rated :
- 400V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Orientation :
- Straight
- Published :
- 2014
- Cable Group :
- TRC-50-2
- Body Finish :
- Nickel
- Connector Style :
- TRB, Twinaxial/Triaxial
- Center Contact Material :
- BERYLLIUM COPPER
- Connector Type :
- Plug, Male Pin (Concentric)
- Radiation Hardening :
- No
- Option :
- GENERAL PURPOSE
- Impedance :
- Non-Constant
- Operating Temperature :
- -65°C~165°C
- Datasheets
- PL75C-306
PL75C-306 Documents
Plug, Male Pin (Concentric) Bayonet Lock Non-Constant Bulk TRB, Twinaxial/Triaxial Crimp 1 Port -65°C~165°C
PL75C-306 Overview
The product comes in a package of Plug, Male Pin (Concentric).Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the 70 Series of products.Additionally, there are other features, such as POLARIZED.The device is equipped with 1 ports for the management of a variety of tasks.A number of features make it more powerful because of its Three Lug feature.Cable, Free Hanging mounts the part.There is no operating temperature for the device.Performing well when operated at frequency 500MHz can be achieved.
PL75C-306 Features
70 series
PL75C-306 Applications
There are a lot of Cinch Connectivity Solutions Trompeter
PL75C-306 Coaxial Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
