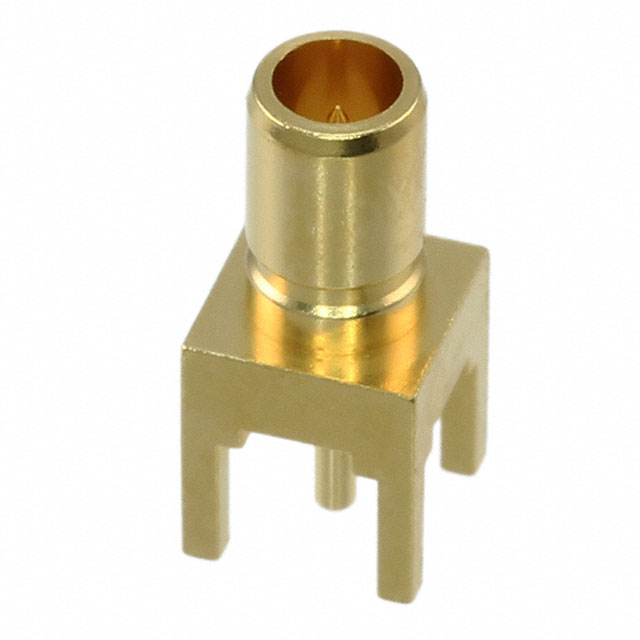

PL75-R-PC
Or copy the link below:
- Mfr.Part #
- PL75-R-PC
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN UMC RCPT STR 75 OHM PCB
- Stock
- 392
- In Stock ：
- 392
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Coaxial Connector (RF) Assemblies
- Connector Type :
- Receptacle, Male Pin
- Total Number of Contacts :
- 1
- Fastening Type :
- Snap-On
- Number of Ports :
- 1
- Center Contact Material :
- Phosphor Bronze
- Mounting Type :
- Through Hole
- Contact Style :
- COAX
- Impedance :
- 75Ohm
- RoHS Status :
- RoHS Compliant
- Mating Cycles :
- 500
- Body Material :
- Brass
- Connector Style :
- U.FL (UMCC)
- Contact Termination :
- Solder
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reach Compliance Code :
- Unknown
- Series :
- PL75
- Center Contact Plating :
- Gold
- Contact Material :
- Bronze
- Reliability :
- COMMERCIAL
- Frequency (Max) :
- 3GHz
- Length - Termination :
- 0.09 inch
- Factory Lead Time :
- 10 Weeks
- Operating Temperature :
- -30°C~85°C
- Operating Frequency-Max :
- 3GHz
- Published :
- 2013
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Contact Finish - Mating :
- NOT SPECIFIED
- Dielectric Withstanding Voltage :
- 250VAC V
- Packaging :
- Bulk
- Datasheets
- PL75-R-PC
Receptacle, Male Pin Snap-On 75Ohm Bulk U.FL (UMCC) Solder 1 Port Polytetrafluoroethylene (PTFE) -30°C~85°C
PL75-R-PC Overview
The product comes in a package of Receptacle, Male Pin.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the PL75 Series of products.The device is equipped with 1 ports for the management of a variety of tasks.Through Hole mounts the part.There is no operating temperature for the device.
PL75-R-PC Features
PL75 series
PL75-R-PC Applications
There are a lot of Hirose Electric Co Ltd
PL75-R-PC Coaxial Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
