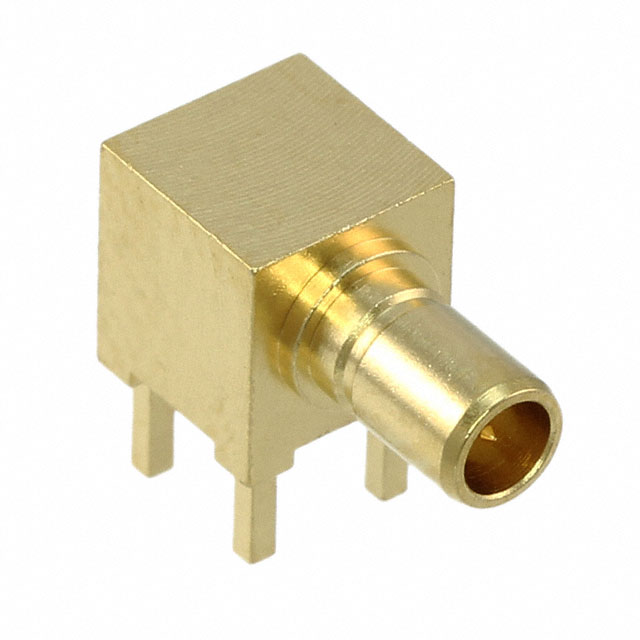

PL75-LR-PC

Manufacturer :

Hirose

Product Category :

Coaxial Connector (RF) Assemblies

Published :

2015

ECCN Code :

EAR99

Connector Type :

Receptacle, Male Pin

Total Number of Contacts :

1

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Dielectric Withstanding Voltage :

250VAC V

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

10 Weeks

VSWR :

1.3

Center Contact Plating :

Gold

Packaging :

Bulk

Reach Compliance Code :

Unknown

Contact Gender :

Male

JESD-609 Code :

e3

Impedance :

75Ohm

Contact Finish - Mating :

Tin

Fastening Type :

Snap-On

Series :

PL75

Lead Free :

Lead Free

Center Contact Material :

Phosphor Bronze

Connector Style :

U.FL (UMCC)

Option :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

Contact Termination :

Solder

DIN Conformance :

No

Contact Style :

COAX

Body Material :

Brass

Operating Temperature :

-30°C~85°C

Shell Material :

Metal

Body Depth :

0.354 inch

MIL Conformance :

No

Reliability :

COMMERCIAL

Contact Material :

Bronze

Number of Ports :

1

Filter Feature :

No

Insulation Material :

POLYTETRAFLUORO ETHYLENE

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Cycles :

500

Frequency (Max) :

1.5GHz

Pbfree Code :

yes

IEC Conformance :

No

Length - Termination :

0.09 inch
