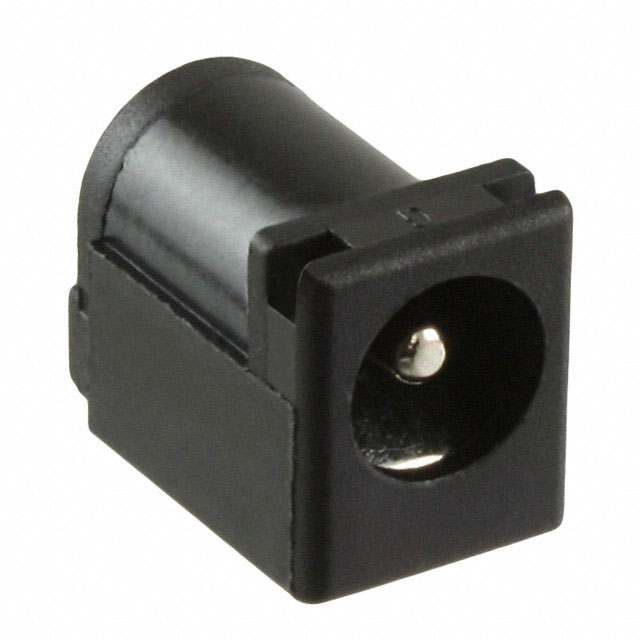

PJ-202A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Housing Color :

Black

Housing Material :

Polybutylene Terephthalate (PBT)

Internal Switch(s) :

Single Switch, Normally Closed

Operating Temperature :

-25°C~85°C

Mounting Type :

Through Hole, Right Angle

Max Operating Temperature :

85°C

Contact Material :

Brass, Copper Alloy

Mount :

Through Hole

Number of Pins :

3

Contact Gender :

Male

Contact Material - Plating :

Tin

Current Rating (Amps) :

2.5A

Number of Conductors :

2

Insulation Resistance :

50mOhm

Lead Free :

Lead Free

Termination :

Kinked Pin

Packaging :

Bulk

Current Rating :

2.5A

Published :

2008

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Mating Length/Depth :

0.354 9.00mm

Contact Plating :

Nickel

Gender :

Male

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-25°C

Flammability Rating :

UL94 V-0

Actual Diameter :

0.079 (2.00mm ID), 0.256 (6.50mm OD)

Orientation :

Horizontal

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Shielding :

Unshielded

Color :

Black

Connector Type :

JACK

Voltage - Rated :

24VDC

Diameter :

2.1mm

Body Color :

Black

Factory Lead Time :

11 Weeks
