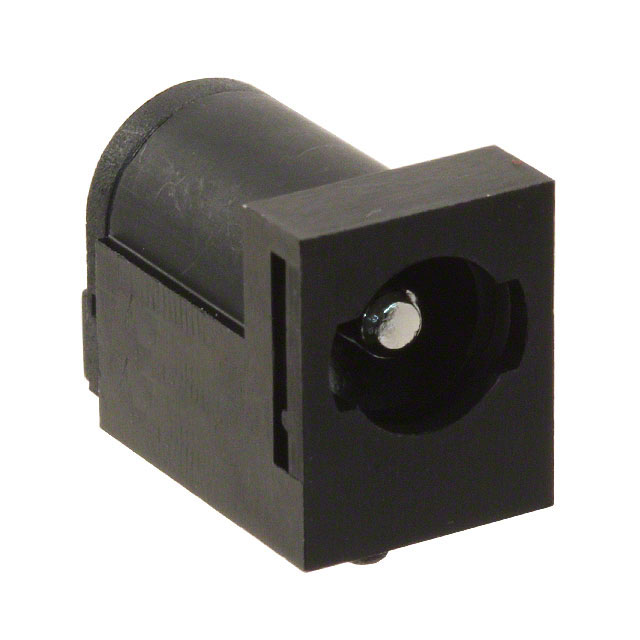

PJ-059BH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Operating Temperature :

-25°C~85°C

Published :

2011

Housing Color :

Black

RoHS Status :

RoHS Compliant

Voltage - Rated :

24VDC

Housing Material :

Polybutylene Terephthalate (PBT)

Gender :

Male

Connector Type :

JACK

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Feature :

Board Guide

Number of Conductors :

2

Lead Free :

Lead Free

Contact Material - Plating :

Silver

Current Rating (Amps) :

5A

Insulation Resistance :

100MOhm

Body Color :

Black

Material Flammability Rating :

UL94 V-0

Shielding :

Unshielded

Mounting Type :

Through Hole, Right Angle

Color :

Black

Max Operating Temperature :

85°C

Mating Length/Depth :

0.386 9.80mm

Contact Gender :

Male

Actual Diameter :

0.098 (2.50mm ID), 0.224 (5.70mm OD)

Mount :

Through Hole

Current Rating :

5A

Packaging :

Tray

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Contact Plating :

Nickel

Min Operating Temperature :

-25°C

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Contact Material :

Brass, Copper Alloy

Termination :

Solder

Internal Switch(s) :

Single Switch, Normally Closed

Orientation :

Horizontal

Factory Lead Time :

11 Weeks
