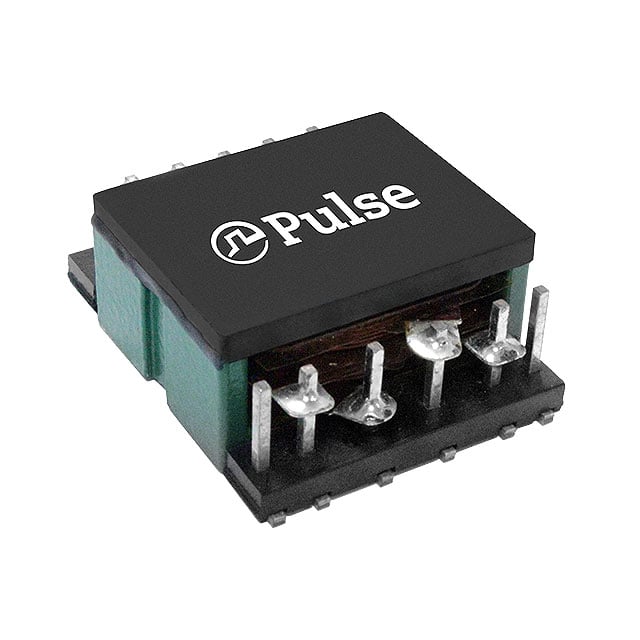

PH0802CNL
Or copy the link below:
- Mfr.Part #
- PH0802CNL
- Manufacturer
- Pulse Electronics
- Package / Case
- Datasheet
- Download
- Description
- XFMR DC/DC CONV SMD
- Stock
- 350
- In Stock ：
- 350
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Pulse Electronics
- Product Category :
- Switching Converter, SMPS Transformers
- Chipset Manufacturer :
- --
- Operating Temperature :
- -40°C~125°C
- Style :
- Planar
- Size / Dimension :
- 0.850Lx0.970W 21.59mmx24.65mm
- Intended Chipset :
- --
- Applications :
- --
- Published :
- 2016
- Voltage - Isolation :
- 1500Vrms
- Factory Lead Time :
- 11 Weeks
- Width :
- 24.65 mm
- Product Type :
- Audio and Signal Transformers
- Inductance :
- 194 uH
- ECCN Code :
- EAR99
- Length :
- 21.59 mm
- Minimum Operating Temperature :
- - 40 C
- Height Seated (Max) :
- 0.368 9.35mm
- Footprint :
- 0.850 L x 0.970 W (21.59mm x 24.65mm)
- Operating Temperature Range :
- - 40 C to + 125 C
- Package :
- Tray
- Packaging :
- Tray
- RoHS Status :
- RoHS Compliant
- Series :
- PH08XXCNL
- Product :
- Power Inductors
- Type :
- For DC/DC Converters
- Manufacturer :
- Pulse
- Brand :
- Pulse Electronics
- Subcategory :
- Transformers
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 9.1 mm
- Height - Seated (Max) :
- 0.368 (9.35mm)
- Voltage - Auxillary :
- --
- RoHS :
- Details
- Maximum Operating Temperature :
- + 125 C
- Inductance @ Frequency :
- --
- Power Rating :
- 160 W
- Frequency :
- 200kHz~700kHz
- Voltage - Primary :
- --
- Mounting Type :
- Surface Mount
- Termination Style :
- SMD/SMT
- Product Status :
- Obsolete
- Voltage - Auxiliary :
- -
- Product Category :
- Power Transformers
- Datasheets
- PH0802CNL
