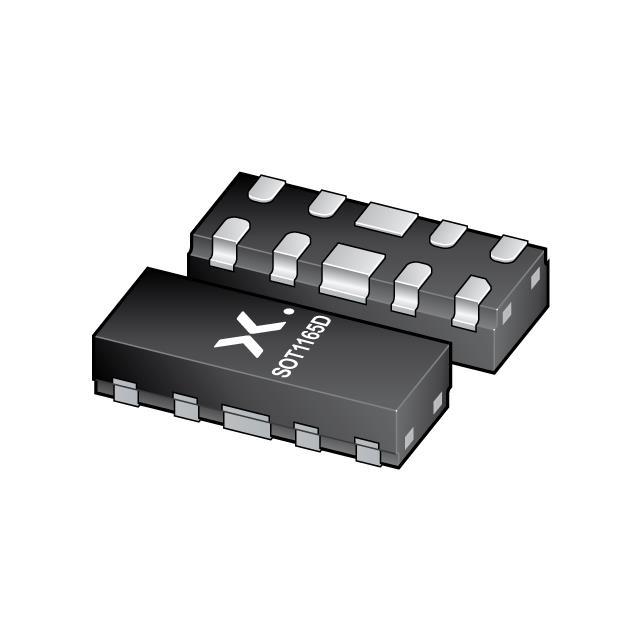

PESD4USB5B-TTSAX

Manufacturer :

Nexperia

Product Category :

Package / Case :

10-WFDFN

Applications :

Automotive, HDMI, USB

Operating Temperature :

-55°C ~ 150°C (TA)

Direction Type :

Bi-Directional

Product Type :

ESD Suppressors

Breakdown Voltage :

9 V

Package :

Digi-Reel?

Package Type :

DFN2510D

Product Category :

ESD Suppressors / TVS Diodes

Product Status :

Active

Capacitance @ Frequency :

0.24pF @ 1MHz

Power - Peak Pulse :

-

Number of Channels :

4 Channel

RoHS :

Details

Manufacturer :

Nexperia

Working Voltage :

5 V

Qualification :

AEC-Q101

Subcategory :

TVS Diodes / ESD Suppression Diodes

Base Product Number :

PESD4USB5

Maximum Operating Temperature :

+ 150 C

Type :

Zener

Supplier Device Package :

DFN2510D-10

Series :

Automotive, AEC-Q101

Unidirectional Channels :

4

Current - Peak Pulse (10/1000μs) :

7A (8/20μs)

Voltage - Breakdown (Min) :

6V

Polarity :

Bidirectional

Voltage - Reverse Standoff (Typ) :

5V (Max)

Voltage - Clamping (Max) @ Ipp :

5.5V (Typ)

Clamping Voltage :

3.5 V

Termination Style :

SMD/SMT

Packaging :

MouseReel

Power Line Protection :

No

Minimum Operating Temperature :

- 55 C

Operating Voltage :

5V

Brand :

Nexperia

Mounting Type :

Surface Mount, Wettable Flank
