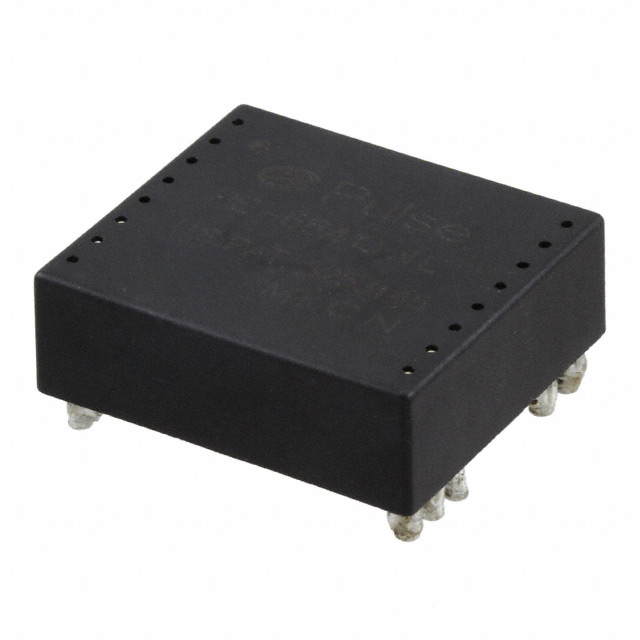

PE-68413NL

Manufacturer :

Pulse Electronics

Product Category :

Switching Converter, SMPS Transformers

Operating Temperature Min Deg. C :

-40C

Transformer Type :

FLYBACK TRANSFORMER

ECCN Code :

EAR99

Manufacturer :

Pulse

Turns Ratio :

1:0.5:1.15:1.15

Chipset Manufacturer :

National Semiconductor

Operating Temp Range :

-40C to 130C

Pin Count :

16

Intended Chipset :

LM2585, LM2586, LM2587, LM2588

Height Seated (Max) :

0.480 12.19mm

Product Length (mm) :

23.37(mm)

Depth :

26.42mm

Published :

2003

Applications :

Flyback Converters

Product :

Flyback Transformers

Number of Pins :

16

Product Category :

Power Transformers

RoHS Status :

RoHS Compliant

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Subcategory :

Transformers

Product Height (mm) :

11.94(mm)

Operating Temperature :

-40°C~130°C

Frequency :

100kHz

Series :

--

Voltage - Primary :

18V~36V

Rad Hardened :

No

Product Type :

Power Transformers

Height - Seated (Max) :

0.480 (12.19mm)

Voltage - Isolation :

1500Vrms

Operating Temperature Max Deg. C :

130C

Package / Case :

SMD/SMT

Brand :

Pulse Electronics

Footprint :

0.920 L x 1.040 W (23.37mm x 26.42mm)

Package :

Tray

Inductance @ Frequency :

--

Mount :

Surface Mount

Voltage - Auxiliary :

-

DC Resistance (DCR) :

30mOhm

Output Voltage (Max) :

5VDC/12VDC/-12VDC(V)

Product Depth (mm) :

26.42(mm)

Input Voltage (Max) :

36VDC

Product Status :

Active

Packaging :

Tray

Lead Free :

Lead Free

RoHS :

Details

Mounting Type :

Surface Mount

Voltage - Auxillary :

--

Type :

For DC/DC Converters

Factory Lead Time :

9 Weeks

Size / Dimension :

0.920Lx1.040W 23.37mmx26.42mm

Mounting Style :

Surface Mount

Turns Ratio - Primary:Secondary :

1:0.5
