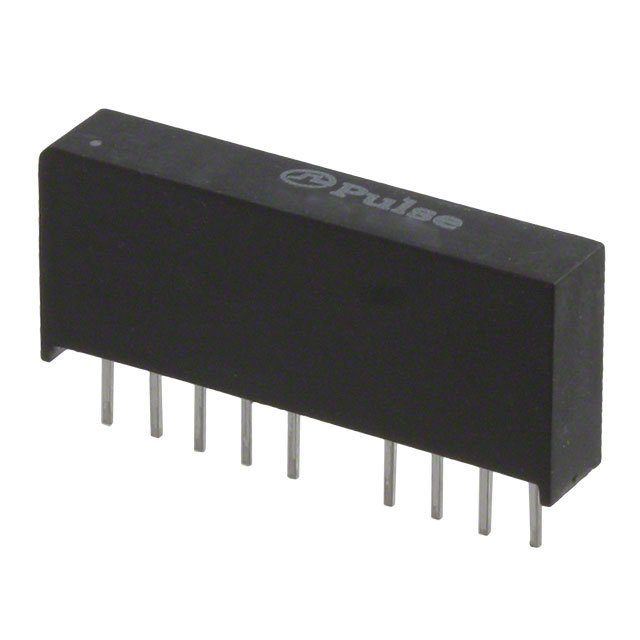

PE-68017S

Manufacturer :

Pulse Electronics

Product Category :

Pulse Transformers

Application :

LAN; 10 BASE-T

Height Seated (Max) :

0.450 11.43mm

Transformer Type :

Isolation and Data Interface (Encapsulated)

Package :

-

Width :

5.33mm

Radiation Hardening :

No

Lead Free :

Contains Lead

Mount :

Through Hole

ECCN Code :

EAR99

Mounting Type :

Through Hole

Length :

25.4mm

Number of Functions :

1

Termination :

Through Hole

Packaging :

--

Physical Dimension :

25.4mm X 5.33mm X 11.43mm

Weight :

0.09oz 2.56g

Packing Method :

Tube

Min Operating Temperature :

0°C

Turns Ratio - Primary:Secondary :

1CT:1CT

Size / Dimension :

1.000Lx0.210W 25.40mmx5.33mm

Height :

11.43mm

Operating Temperature :

-

Product Status :

Obsolete

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

Module

ET (Volt-Time) :

-

Height - Seated (Max) :

0.450 (11.43mm)

RoHS Status :

Non-RoHS Compliant

Published :

1998

Isolation Voltage :

1.5kV

Series :

-

Turns Ratio (NpNs) :

1:1; 1:1

Max Operating Temperature :

70°C

Inductance :

-
