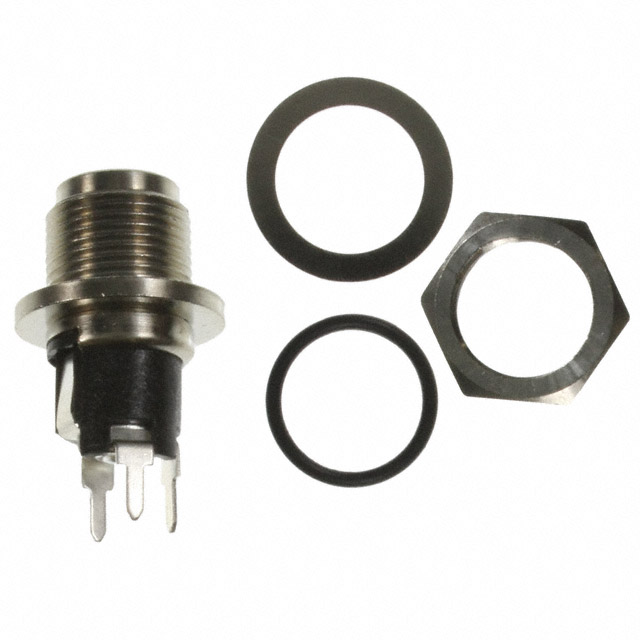

PCL712AS

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Packaging :

Bulk

Voltage - Rated DC :

30V

Pin Diameter :

2.5 mm

Published :

2009

Mounting Type :

Panel Mount, Through Hole

Current Rating :

5A

Body Color :

Silver, Black

Body Material :

COPPER ALLOY

Shielding :

Unshielded

Actual Diameter :

0.098 (2.50mm ID)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Factory Lead Time :

8 Weeks

RoHS Status :

ROHS3 Compliant

Number of Pins :

3

Contact Material :

COPPER ALLOY

REACH SVHC :

No SVHC

Orientation :

Straight

Housing Material :

Thermoplastic

Thread Size :

7/16-32

Mounting Feature :

Bulkhead - Front Side Nut

Housing Color :

Black

DIN Conformance :

No

Mount :

Bulkhead, Front Side Nut, PCB, Panel, Through Hole

JESD-609 Code :

e4

IEC Conformance :

No

Internal Switch(s) :

Single Switch, Normally Closed

Contact Plating :

Nickel, Silver

Feature :

Mounting Hardware, Thread Lock

Ingress Protection :

IP68

Contact Material - Plating :

Silver

Option :

GENERAL PURPOSE

MIL Conformance :

No

Length :

20.828mm

Gender :

Male

Pbfree Code :

yes

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Termination :

Solder

Connector Type :

JACK

Includes :

4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
