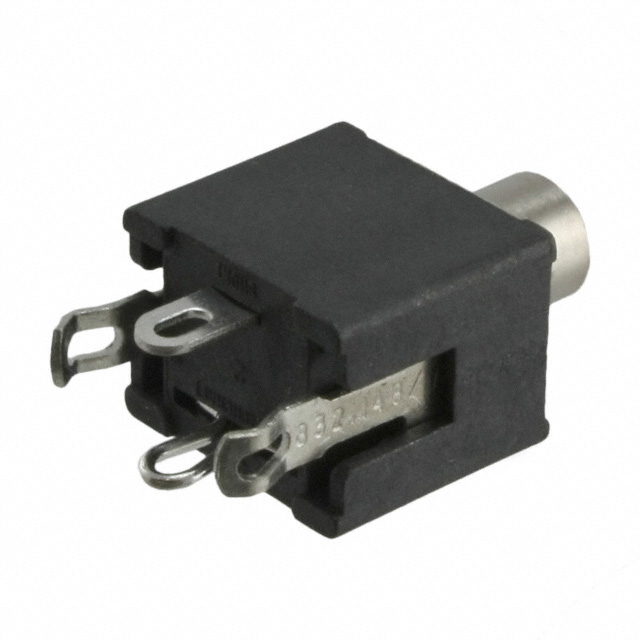

PC142AX
Or copy the link below:
- Mfr.Part #
- PC142AX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Molded
- Datasheet
- Download
- Description
- CONN JACK MONO 3.55MM PCB
- Stock
- 208
- In Stock ：
- 208
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Industry Recognized Mating Diameter :
- 3.55mm (0.14, Tini Plug)
- Body Material :
- COPPER ALLOY
- Contact Material :
- COPPER ALLOY
- Signal Lines :
- Mono
- Max Voltage Rating (DC) :
- 48V
- Body Color :
- Silver, Black
- Package / Case :
- Molded
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 48VDC
- Termination :
- Solder Eyelet(s)
- Gender :
- FEMALE
- RoHS Status :
- ROHS3 Compliant
- Number of Terminations :
- 4
- Internal Switch(s) :
- Single Switch
- Current Rating :
- 250mA
- Number of Ports :
- 1
- Factory Lead Time :
- 8 Weeks
- Published :
- 2005
- Length :
- 16.26mm
- Connector Type :
- Phone Jack
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Color :
- Black
- Series :
- TINI-D-JAX®
- Shielding :
- Unshielded
- Packaging :
- Bulk
- Contact Material - Plating :
- Tin
- Mount :
- Through Hole
- Contact Plating :
- Nickel, Tin
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Actual Diameter :
- 0.145 (3.68mm)
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Housing Material :
- Plastic
- Max Current Rating :
- 250mA
- Number of Contacts :
- 2
- Datasheets
- PC142AX
