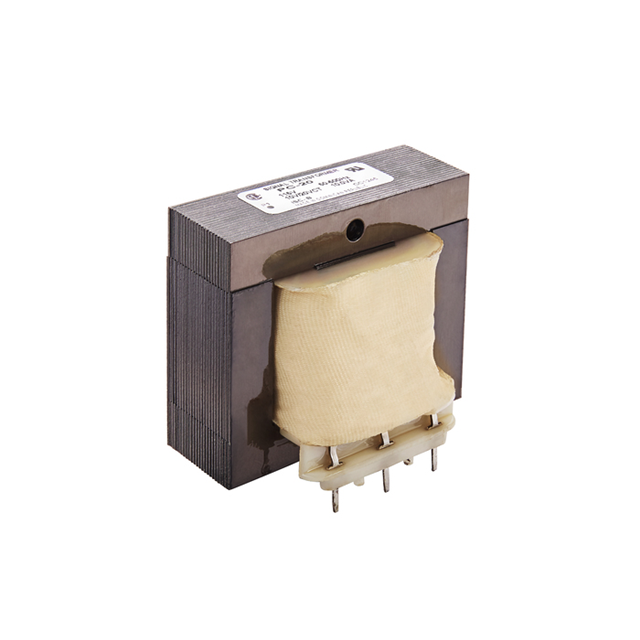

PC-56-180

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Current - Output (Max) :

Parallel 360mA Series 180mA

Operating Frequency-Min :

0.05kHz

Size / Dimension :

47.60mm Lx36.50mm W

Published :

2009

Max Output Current :

180mA

Factory Lead Time :

16 Weeks

Approval Agency :

UL; CSA

HTS Code :

8504.31.40.35

Weight :

0.563lb 255.37g

Output Voltage 2 :

28V

VA Rating :

10 VA

Secondary Winding(s) :

Dual

Voltage - Primary :

115V

Output Voltage 1 :

28V

Mounting Type :

Through Hole

Lead Free :

Lead Free

Type :

Laminated Core

Power - Max :

10VA

Length :

47.6mm

Additional Feature :

OPERATING FREQUENCY: 50-500 HZ

Max Power Dissipation :

10W

Termination Style :

PC Pin

Primary Winding(s) :

Single

Output Power :

10W

RoHS Status :

ROHS3 Compliant

Width :

36.5mm

Center Tap :

No

Mount :

Through Hole

Voltage - Secondary (Full Load) :

Parallel 28V Series 56V

Voltage - Isolation :

1500Vrms

Termination :

PC Pin

ECCN Code :

EAR99

Series :

PC

Moisture Sensitivity Level (MSL) :

Not Applicable

Height :

41.3mm

Operating Frequency-Max :

0.5kHz

Height Seated (Max) :

41.27mm
