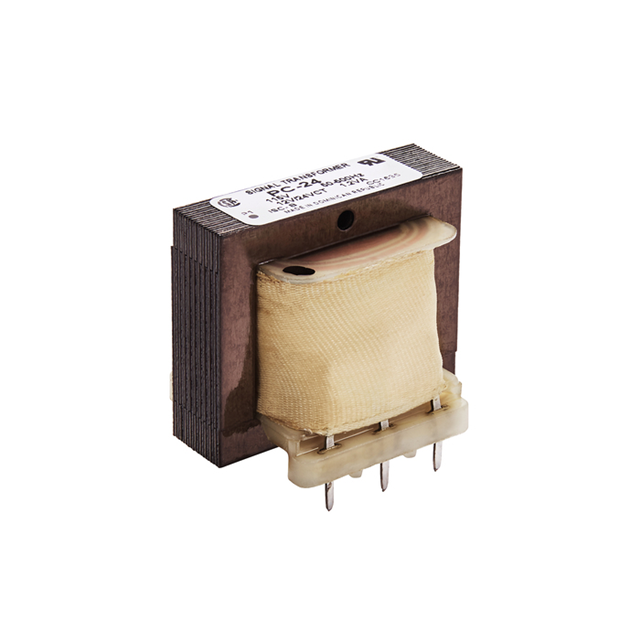

PC-10-120

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

HTS Code :

8504.31.40.35

Termination :

PC Pin

Height Seated (Max) :

30.15mm

Max Output Current :

120mA

Output Power :

1.2W

Length :

34.9mm

RoHS Status :

ROHS3 Compliant

Series :

PC

Additional Feature :

OPERATING FREQUENCY: 50-500 HZ

Mount :

Through Hole

Operating Frequency-Max :

0.5kHz

Max Power Dissipation :

1.2W

Published :

2009

Primary Winding(s) :

Single

Output Voltage 2 :

5V

Voltage - Primary :

115V

Current - Output (Max) :

Parallel 240mA Series 120mA

Moisture Sensitivity Level (MSL) :

Not Applicable

ECCN Code :

EAR99

VA Rating :

1.2 VA

Voltage - Secondary (Full Load) :

Parallel 5V Series 10V

Height :

30.1mm

Operating Frequency-Min :

0.05kHz

Lead Free :

Lead Free

Voltage - Isolation :

1500Vrms

Weight :

0.188lb 85.28g

Approval Agency :

UL; CSA

Factory Lead Time :

18 Weeks

Mounting Type :

Through Hole

Center Tap :

No

Power - Max :

1.2VA

Secondary Winding(s) :

Dual

Width :

28.6mm

Type :

Laminated Core

Termination Style :

PC Pin

Size / Dimension :

34.90mm Lx28.60mm W

Output Voltage 1 :

5V
