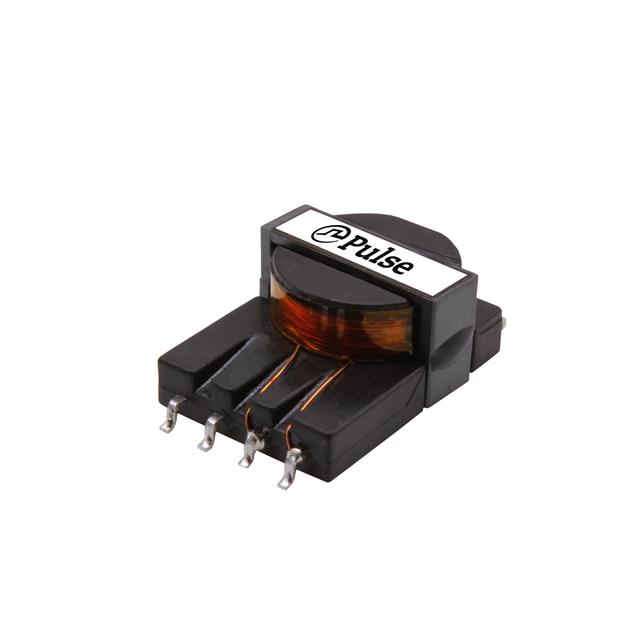

PAS6322.050NLT
Or copy the link below:
- Mfr.Part #
- PAS6322.050NLT
- Manufacturer
- Pulse Electronics
- Package / Case
- Datasheet
- Download
- Description
- XFRMR CURRENT SENSE 1:50 50A
- Stock
- 451
- In Stock ：
- 451
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Pulse Electronics
- Product Category :
- Current Sense Transformers
- Height - Seated (Max) :
- 0.029" (0.73mm)
- Mounting Style :
- PCB Mount
- Brand :
- Pulse Electronics
- Current Rating (Amps) :
- 50 A
- Termination Style :
- Gull wing
- Mounting Type :
- Surface Mount
- RoHS :
- Details
- Turns Ratio :
- 1:50
- Weight :
- -
- Product Status :
- Active
- Current Rating :
- 50 A
- Manufacturer :
- Pulse
- Current Ratio :
- -
- Subcategory :
- Transformers
- Turns Ratio - Primary:Secondary :
- 1:50
- Package :
- Cut Tape (CT)
- DC Resistance (DCR) :
- 0.5mOhm Primary, 600mOhm Secondary Max
- Packaging :
- MouseReel
- Ratings :
- -
- Minimum Operating Temperature :
- - 40 C
- Length :
- 12.8 mm
- Width :
- 7 mm
- Frequency Range :
- 20kHz ~ 1MHz
- Series :
- PAS6322.XXXNLT
- ET (Volt-Time) :
- -
- Type :
- Invasive
- Size / Dimension :
- 0.122" L x 0.252" W (3.10mm x 6.40mm)
- Maximum Operating Temperature :
- + 130 C
- Inductance :
- 1.1 mH
- Product Type :
- Current Transformers
- Product Category :
- Current Transformers
- Datasheets
- PAS6322.050NLT
