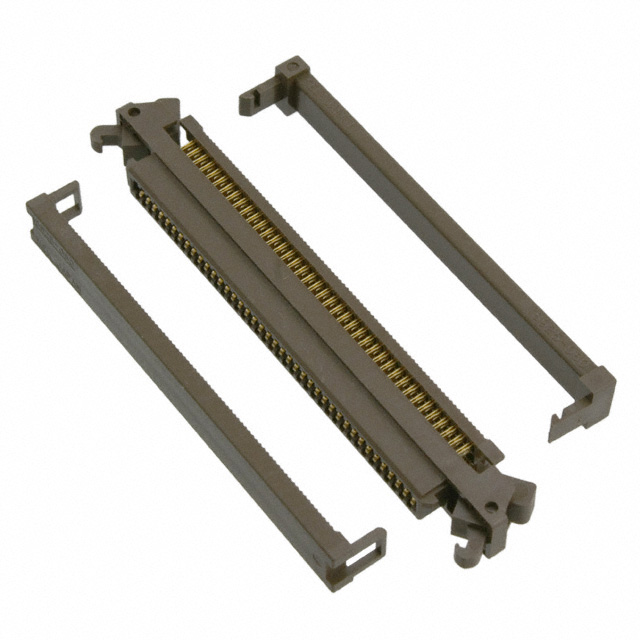

P25LE-080S-DA
Or copy the link below:
- Mfr.Part #
- P25LE-080S-DA
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 80POS IDC 30AWG GOLD
- Stock
- 821
- In Stock ：
- 821
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Free Hanging, Panel Mount
- Connector Type :
- Socket
- Number of Rows :
- 2
- Length :
- 70.73mm
- Wire/Cable Gauge :
- 30 AWG
- Max Current Rating :
- 500mA
- Max Operating Temperature :
- 85°C
- Depth :
- 6.6mm
- RoHS Status :
- RoHS Compliant
- Published :
- 2007
- Gender :
- FEMALE
- Feature :
- Feed Through, Strain Relief
- Wire Gauge :
- 30 AWG
- Current Rating :
- 500mA
- Contact Material :
- Bronze
- Contact Type :
- Outer Shroud Contact
- Series :
- P25LE
- Wire/Cable Type :
- Ribbon
- Contact Gender :
- FEMALE
- Voltage - Rated :
- 300V
- Number of Positions :
- 80
- Mount :
- Cable, Free Hanging
- Color :
- Brown
- Stack Height :
- 11.8mm
- Pitch :
- 0.050 1.27mm
- Contact Finish Thickness :
- Flash
- Cable Termination :
- IDC
- Housing Material :
- Polyphenylene
- Contact Plating :
- Gold
- Termination :
- IDT
- Number of Contacts :
- 80
- Min Operating Temperature :
- -55°C
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Fastening Type :
- Latch Lock/Eject Hooks
- Orientation :
- RIGHT ANGLE
- Contact Finish :
- Gold
- Wire Type :
- Ribbon Cable
- Datasheets
- P25LE-080S-DA
