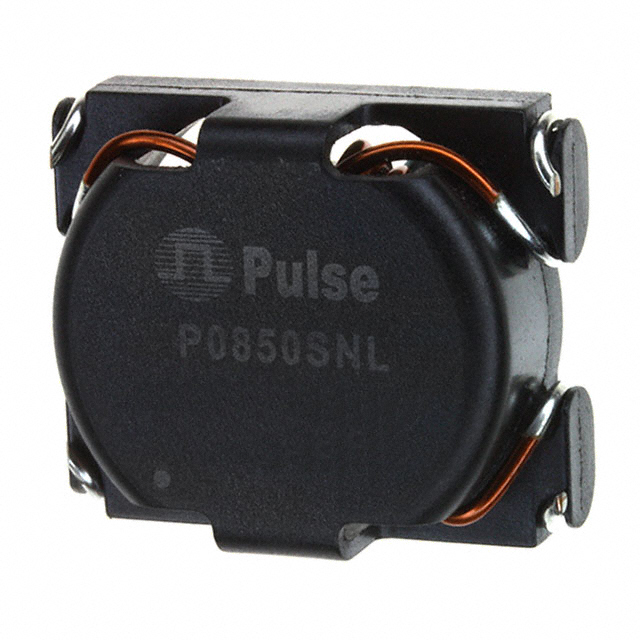

P0850SNL

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Number of Terminations :

4

Size / Dimension :

1.220Lx1.000W 30.99mmx25.40mm

Self Resonant Frequency :

-

Type :

Toroidal

Inductance Tolerance :

20

Product Width :

25.4 mm

Test Frequency :

260 kHz

Manufacturer :

Pulse

Saturation Current :

-

RoHS :

Details

Depth :

25.4mm

Radiation Hardening :

No

Width :

23.87 mm

Height :

12.7mm

DC Current :

5A

Tolerance :

±20%

Termination :

SMD/SMT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Special Feature :

SERIES CONNECTED

Inductance :

23μH

Mounting Type :

Surface Mount

Termination Style :

SMD/SMT

Operating Temperature :

-40°C~130°C

Maximum Operating Temperature :

+ 130 C

Current - Saturation (Isat) :

-

Ratings :

-

Features :

-

Published :

2007

Mount :

Surface Mount

DC Resistance (DCR) :

13mOhm

Terminal Placement :

DUAL IN-LINE

Number of Functions :

2

Inductor Application :

POWER INDUCTOR

Frequency - Self Resonant :

-

Pbfree Code :

yes

Resistance :

13mOhm

Product Type :

Fixed Inductors

HTS Code :

8504.50.80.00

Product Category :

Power Inductors - SMD

Series :

Bigfoot

Height Seated (Max) :

0.500 12.70mm

Package :

Tube

Length :

23.87 mm

Lead Free :

Lead Free

Max DC Current :

5A

Brand :

Pulse Electronics

Shape/Size Description :

CYLINDRICAL PACKAGE

Military Standard :

Not

Material - Core :

-

Height - Seated (Max) :

0.500 (12.70mm)

Shielding :

No

RMS Current (Irms) :

5 A

Q @ Freq :

-

Product Status :

Active

Mounting Style :

PCB Mount

Current Rating (Amps) :

5 A

Package / Case :

Nonstandard

ECCN Code :

EAR99

Product Length :

30.99

Supplier Device Package :

-

Product :

Power Inductors

Subcategory :

Inductors, Chokes and Coils

Terminal Shape :

ONE SURFACE

Factory Lead Time :

13 Weeks

RoHS Status :

RoHS Compliant

Application :

Power

Core Type :

Drum

Minimum Operating Temperature :

- 40 C

Current Rating :

5A

Packaging :

Tube
