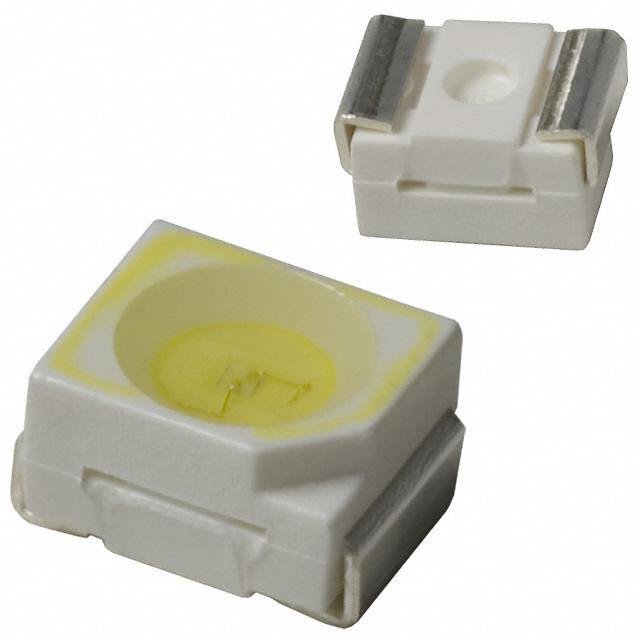

OVS9WBCR4

Manufacturer :

TT Electronics

Product Category :

Color :

White

Max Power Dissipation :

85mW

Lens Size :

2.40mm Dia

Reverse Voltage :

5V

Published :

2006

Voltage - Forward (Vf) (Typ) :

3.2V

Pbfree Code :

yes

Packaging :

Tape and Reel (TR)

Power Dissipation :

85mW

Mounting Type :

Surface Mount

Depth :

2.8mm

Peak Pulse Current :

200mA

Height :

1.8mm

Number of Elements :

1

Max Reverse Leakage Current :

10μA

Package / Case :

2-PLCC

Outside Diameter :

2.8 mm

Optoelectronic Device Type :

SINGLE COLOR LED

Millicandela Rating :

750mcd

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Lens Color :

Colorless

Mount :

Surface Mount

Number of Pins :

2

Lead Free :

Lead Free

Lens Transparency :

Clear

Min Operating Temperature :

-40°C

Luminous Intensity :

750 mcd

Configuration :

Standard

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Terminal Pitch :

3mm

Viewing Angle :

120°

Lens Style :

Round with Flat Top

Size / Dimension :

3.20mm Lx2.80mm W

Number of Functions :

1

Max Operating Temperature :

100°C

Number of Terminations :

2

REACH SVHC :

No SVHC

Forward Current :

20mA

Packing Method :

TAPE AND REEL 7"
